Signal Missing

Signal missing

Checking components and wiring

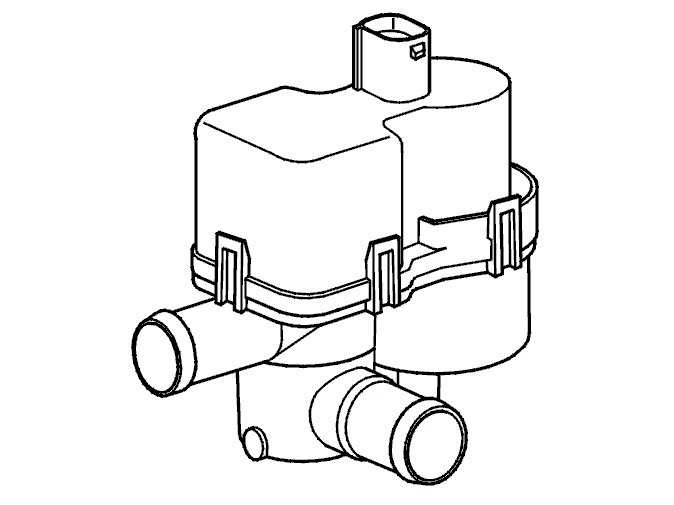

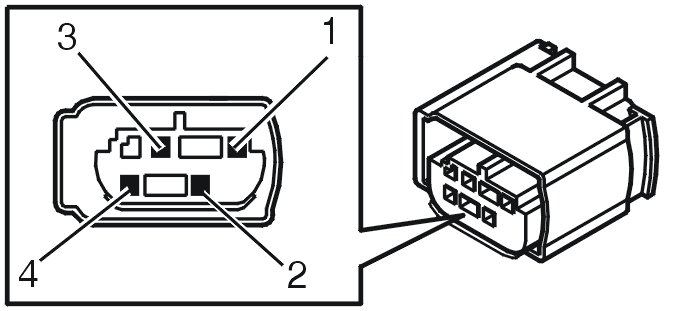

Check the leak diagnostic unit connectors. Check for contact resistance and oxidation.
Check the resistance of the pump motor between the leak diagnostic unit connector terminals #1 and #4 (leak diagnostic pump side).
Check the signal cable between engine control module (ECM) terminal #B7 (#B17) and leak diagnostic pump terminal #1. Check for an open-circuit.
Check the power supply cable between system relay terminal #5 and leak diagnostic unit terminal #4. Check for an open-circuit.
Remedy as necessary.

Other information:
- Checking wiring and terminals Checking Wiring And Terminals
- For resistance values, see Component specifications Specifications
- To connect the breakout box, see Connecting the breakout box, B5244T5, B5254T2 Connecting the Breakout Box
- For information about signals on 5 cylinder engines, see Signal specification Signal Description / Specification
- For information about signals on 6 cylinder engines, see Signal specification Signal Description / Specification
- To access or replace the leak diagnostic unit, see Leak diagnostic pump, replacing Service and Repair.













Continue - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
Fault-tracing is not followed by verification for this fault.

Hint: After the diagnostic trouble codes (DTCs) are erased, the function of the leak diagnostic unit can be checked by running a quick test of the fuel tank system in the vehicle communication socket. If there is a fault, the fault status will be "FAULT FOUND" on the leak diagnostic unit.

The information can be displayed again or fault-tracing this fault can be interrupted.

Do you want to view the information again?

Yes - Attempt New Test

No - Fault Found

------------------------

Attempt New Test - Checking components and wiring

FAULT FOUND - Fault Found

-------------------------------------------------
