Signal Too High
Signal too high
Checking for permanent or intermittent faults
- Ignition on.
Press the switch for the power door mirrors to check the function of the power door mirrors.
Can the power door mirrors be maneuvered?
Yes - Intermittent fault
No - Checking for a short-circuit
-------------------------------------------------
Checking for a short-circuit
Check the cable between the door control module and the power door mirror (as follows). Check for a short-circuit to supply voltage.
Remedy as necessary.
Try a new power door mirror if the cable is OK.

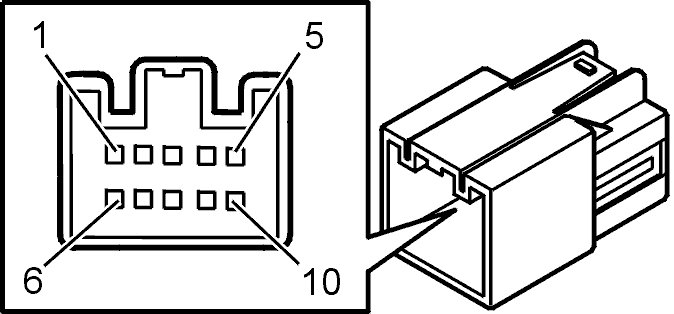

If the car is equipped with a 10-pin connector
Control module terminal #26A and power door mirror terminal #9.
Control module terminal #28A and power door mirror terminal #10.
Control module terminal #29A and power door mirror terminal #8.
Control module terminal #27A and power door mirror terminal #7.
Control module terminal #11B and power door mirror terminal #5.
If the car is equipped with a 16-pin connector
Control module terminal #26A and power door mirror terminal #15.
Control module terminal #28A and power door mirror terminal #16.
Control module terminal #29A and power door mirror terminal #14.
Control module terminal #27A and power door mirror terminal #7.
Control module terminal #11B and power door mirror terminal #8.
Other information:
- To connect the breakout box, see Connecting the breakout box Connecting the Breakout Box
- For further information about signals and other values, see Signal specification Pinout Values and Diagnostic Parameters
- To access the door control module, see Driver's door module / passenger door module (DDM/PDM), replacing Driver's Door Module/Passenger Door Module (DDM/PDM), Replacing
- To access and replace the power door mirror, see Door mirror, replacing Service and Repair
- Checking wiring and terminals Checking Wiring And Terminals.
Continue - Verification
-------------------------------------------------
Intermittent fault
Check the door control module and power door mirror connectors. Check for contact resistance. Check for oxidation.
Check the cable between the door control module and the power door mirror (as follows). Check for an intermittent short-circuit to supply voltage. Check for an intermittent open-circuit.
If the car is equipped with a 10-pin connector
Control module terminal #26A and power door mirror terminal #9.
Control module terminal #28A and power door mirror terminal #10.
Control module terminal #29A and power door mirror terminal #8.
Control module terminal #27A and power door mirror terminal #7.
Control module terminal #11B and power door mirror terminal #5.
If the car is equipped with a 16-pin connector
Control module terminal #26A and power door mirror terminal #15.
Control module terminal #28A and power door mirror terminal #16.
Control module terminal #29A and power door mirror terminal #14.
Control module terminal #27A and power door mirror terminal #7.
Control module terminal #11B and power door mirror terminal #8.
Other information:
- To connect the breakout box, see Connecting the breakout box Connecting the Breakout Box
- For further information about signals and other values, see Signal specification Pinout Values and Diagnostic Parameters
- To access the door control module, see Driver's door module / passenger door module (DDM/PDM), replacing Driver's Door Module/Passenger Door Module (DDM/PDM), Replacing
- To access the power door mirror, see Door mirror, replacing Service and Repair
- Checking wiring and terminals Checking Wiring And Terminals.
Continue - Fault-tracing information
-------------------------------------------------
Verification
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off
- Reconnect the components, connectors etc.
Operate the door mirror to each limit position using the control. The mirror must move in the corresponding directions.
Is the mirror working?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFIED - Fault Found
VERIFICATION FAILED - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - FAULT-TRACING FAILED
No - Attempt New Test
------------------------
FAULT-TRACING FAILED - No Fault Found
Attempt New Test - Checking for permanent or intermittent faults
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).
Do you want to view the information again?
Yes - Attempt New Test
No - Fault Found
------------------------
FAULT FOUND - Fault Found
Attempt New Test - Checking for permanent or intermittent faults
-------------------------------------------------
