Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition

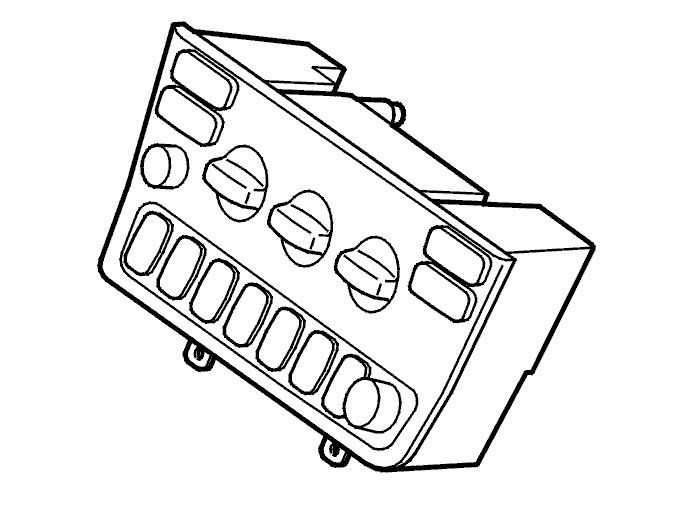

Diagnostic trouble code (DTC) CCM-001D is stored if the control module registers that the signal from the left-hand temperature control is in excess of 99% or less than 1% of the supply voltage (approximately 5 V).

Substitute value
- The control module adopts a value corresponding to half of the maximum temperature control output.

Possible source
- Defective potentiometer
- Short-circuit to supply voltage or ground in the potentiometer.

Fault symptom[s]
- The passenger compartment temperature does not correspond to the set value.
