Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition





Note! This diagnostic trouble code (DTC) applies only to vehicles with dynamic stability and traction control (DSTC).

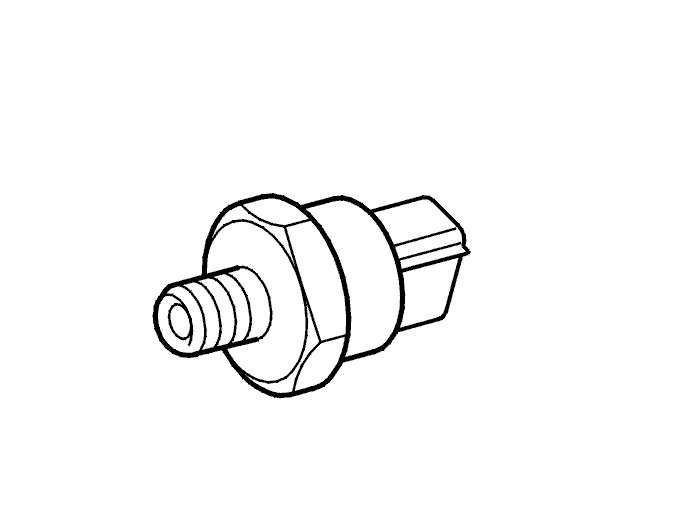

The brake pressure sensors transmit signals to the brake control module (BCM) indicating the pressure in the brake system. If the control module registers an incorrect signal from any brake pressure sensor, then trouble code BCM-0130 or BCM-0133 is generated depending on sensor.

Note! When cables to the brake pressure sensors are physically interchanged when installing, troubleshoot both sensors when trouble code BCM-0130 or BCM-0133 is detected.

Substitute value
- Traction control is blocked.
- SC is blocked.
- Active yaw control is blocked.

Hint: For more information about abbreviations, see: Brake system, abbreviations Brake System, Abbreviations

Possible source
- Open-circuit in the wiring.
- Wiring is short-circuited to ground or supply voltage.
- Damaged pressure sensor.
- Internal fault in the control module.

Fault symptom[s]
- Warning light anti-spin on (applies to model year -2002)
- General yellow warning light on (applies to model year 2003-)
- Anti-spin not working
- Stability function is not working
- Anti skid function is not working
