Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition





Note! The diagnostic trouble code (DTC) applies only to cars with dynamic stability and traction control (DSTC).

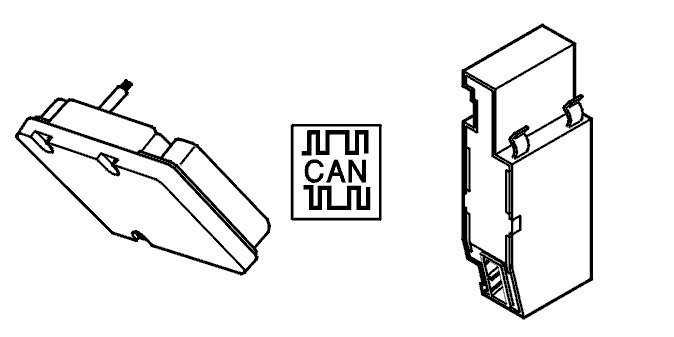

The control module for the steering angle sensor transmits a signal via the Control area network (CAN) which indicates to the brake control module (BCM) whether the function of the steering wheel angle sensor is correct or not.
Diagnostic trouble code (DTC) BCM-0115 is stored if the brake control module (BCM) registers that the signal from the steering angle sensor is missing.
The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, see Brake system, abbreviations Brake System, Abbreviations.

Possible source
- Disruption or open-circuit on the Control area network (CAN)
- The steering angle sensor is not connected on the Control area network (CAN)
- Internal fault in the steering angle sensor.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
