SWM-0023

Condition

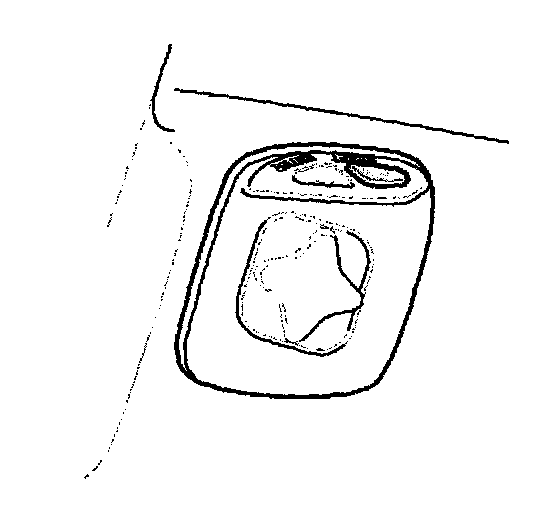

If SWM microprocessor/control unit registers that RTI Reset button is activated for more than 5 minutes, diagnostic trouble code SWM-0023 is displayed.

Substitute value

- Nothing.

Possible source

- RTI Reset button is activated for more than 5 minutes.

Fault symptom[s]

- RTI steering wheel buttons do not work.
