SWM-000B

Condition

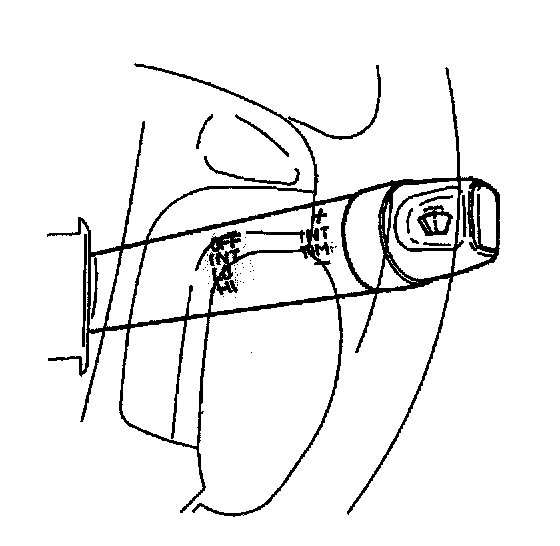

If the control unit registers that switch positions for single wipe and intermittent wipe are activated at the same time for more than 2.5 seconds, diagnostic trouble code SWM-000B is displayed. Continuous checks are done when the control unit is in operation and switches are activated at the same time.

Substitute value

- If windscreen wipers are activated, wipers operate at lowest speed.

Possible source

- Switch positions for single wipe and intermittent wipe are activated at the same time for more than 2.5 seconds.

Fault symptom[s]

- Wipers operate at low speed.
