SWM-0003

Condition

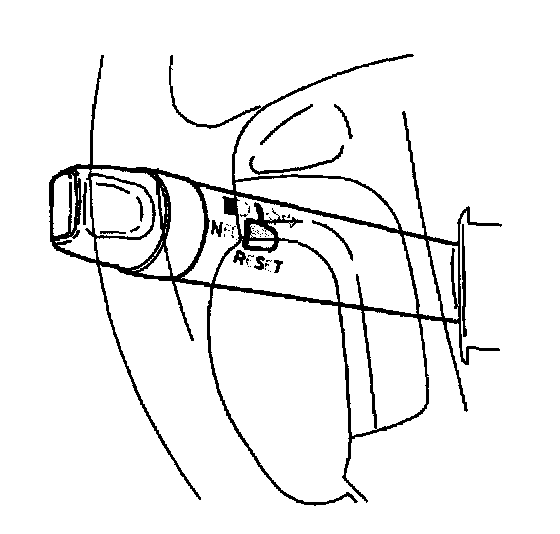

If the control unit registers that headlamp flasher is activated for more than 60 seconds, diagnostic trouble code SWM-0003 is displayed. When the control unit is in operation, continuous checks of headlamp flasher are done.

Substitute value

- Nothing.

Possible source

- Headlamp flasher is activated for more than 60 seconds.

Fault symptom[s]

- Headlamps are fully on until ignition off.
