SAS-0044

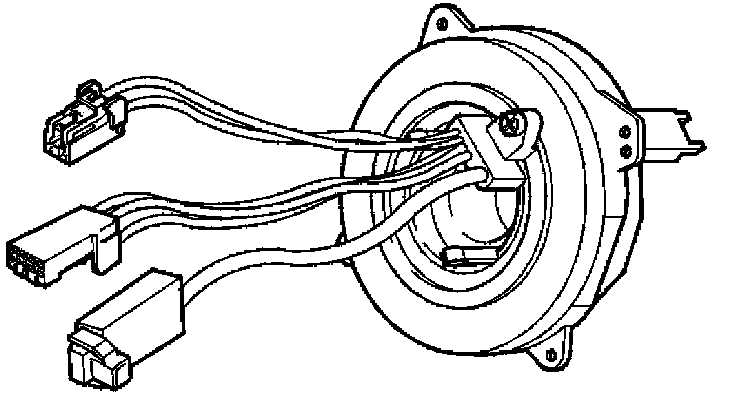

SAS-0044: Steering Wheel Angle Sensor, Faulty Signal
Condition





If the Steering Wheel Angle Sensor (SAS) control unit registers that the voltage in either angle signal A or B is too low or too high, diagnostic trouble code SAS-0044 will be stored.

Substitute value
- Stabilizing function disconnected.
- Anti-spin function blocked.

Possible source
- Internal fault in control unit.

Fault symptom[s]
- Anti-spin warning lamp is on.
- Stabilizing function not working.
- Anti-spin does not work.
