SAS-0041

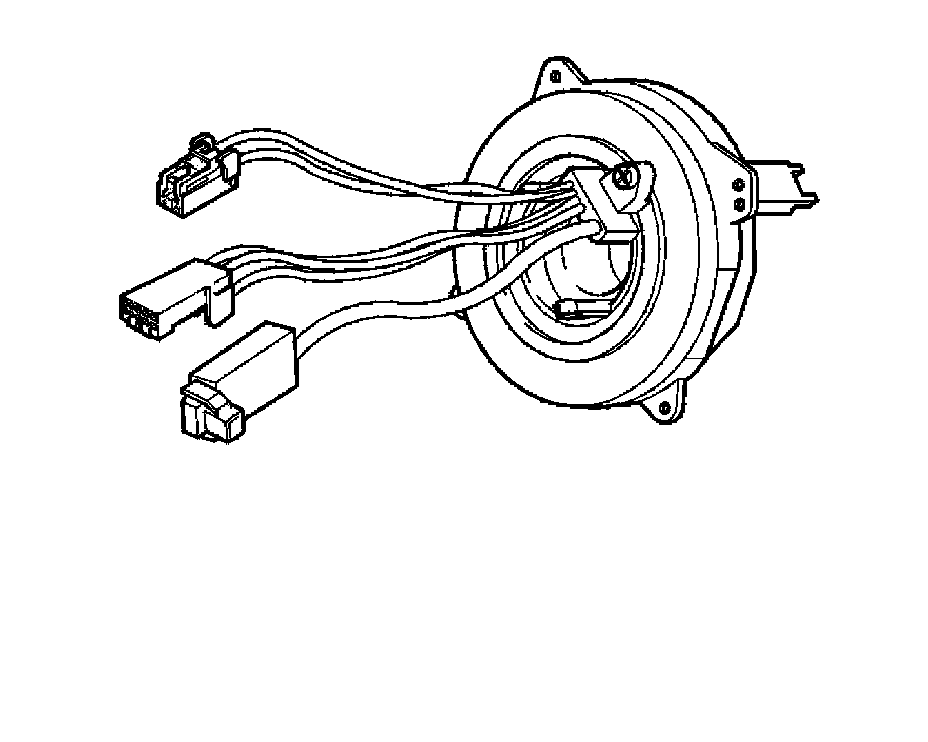

SAS-0041: Steering Wheel Angle Sensor, Internal Fault
Condition





If the Steering Wheel Angle Sensor (SAS) control unit registers that the steering wheel angle from the steering wheel angle sensor exceeds 700° in any direction, diagnostic trouble code SAS-0041 is set.

Substitute value
- Stabilizing function disconnected.
- Anti-spin function blocked.

Possible source
- Steering wheel angle sensor incorrectly adjusted.

Fault symptom[s]
- Anti-spin warning lamp is on.
- Stabilizing function not working.
- Anti-spin does not work.
