SAS-0024

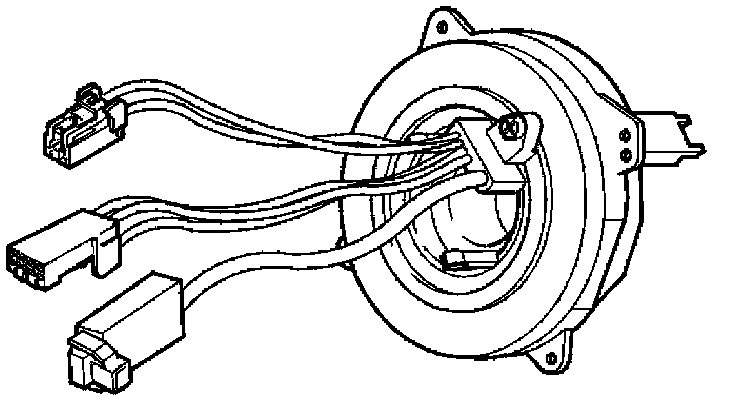

SAS-0024: Steering Wheel Angle Sensor
Signal Missing, Permanent Fault
Signal Missing, Intermittant Fault

Condition





If the Steering Wheel Angle Sensor (SAS) control unit registers that the signal from the steering wheel angle sensor is missing, diagnostic trouble code SAS-0024 is set.

Substitute value
- Stabilizing function disconnected.
- Anti-spin function blocked.

Possible source
- The steering wheel angle sensor connector is not connected.
- Open circuit in the power supply to the steering wheel angle sensor.
- Open circuit in the signal wires.
- Internal fault in the steering wheel angle sensor control unit.

Fault symptom[s]
- Anti-spin warning lamp is on.
- Stabilizing function not working.
- Anti-spin does not work.
