PSM-0004

Condition

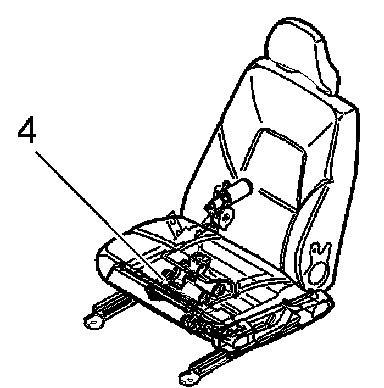

Motor 4 controls seat front edge height. Motor 4 must be activated before the diagnostic trouble code (DTC) can be detected.

Diagnostic trouble code (DTC) PSM-0004 is stored if no Hall sensor pulse is detected when motor 4 is activated and in operation.

Possible source

- Defective Hall sensor in motor 4.
- Short-circuit to supply voltage or ground in the signal cable.
- Open-circuit in the signal cable to the Hall sensor.

Fault symptom[s]

- Automatic seat control does not function (automatic control of other motors functioning as normal).
