CCM-0022

Condition

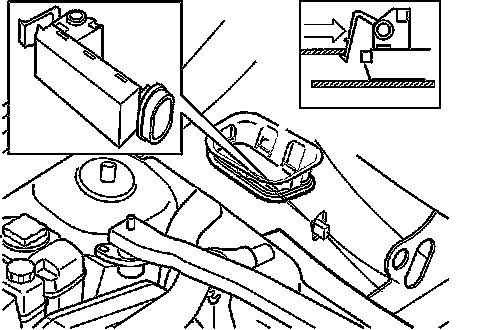

Diagnostic trouble code (DTC) CCM-0022 is stored if the control module registers that the signal from the air quality sensor has a pulse length which is above 3% of the period and that the car configuration parameter states that there should not be an air quality sensor.

The diagnostic trouble code (DTC) CCM-0022 can only be diagnosed for electronic climate control modules (CCM) (ECC version) with air quality sensors.

Substitute value

- The control module does not permit the recirculation shutter to close in the air quality sensor mode while the fault persists.
- No air quality sensor function.

Possible source

- The climate control system should not have an air quality sensor.
- Fault in the car configuration file.

Fault symptom[s]

- Poor air quality in the passenger compartment.
