CCM-000D

Condition

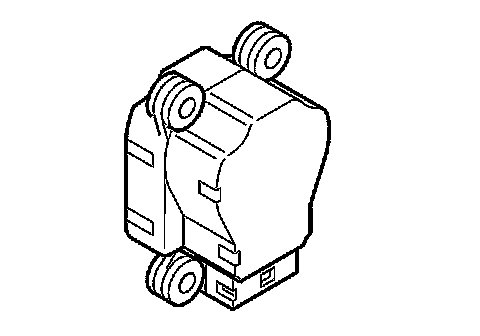

Diagnostic trouble code (DTC) CCM-000D is stored if the control module registers too low a signal from the recirculation damper motor.

Substitute value

- None.

Possible source

- Short-circuit to supply voltage in the signal cable between the control module and the damper motor.
- Open-circuit in the signal cable between the control module and the damper motor.
- Contact resistance, oxidation or loose connections in the connectors
- Defective damper motor.

Fault symptom[s]

- Air flow problem.
