CCM-0007

Condition

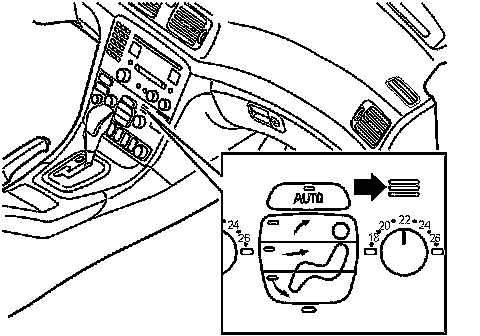

Diagnostic trouble code (DTC) CCM-0007 is stored if the control module registers that the signal from the passenger compartment temperature sensor is above 97% or below 2% of supply voltage (approximately 5 V).

Substitute value

- The control module adopts a substitute value corresponding to approximately 25 degrees C.

Possible source

- Defective power circuit.
- Defective passenger compartment temperature sensor.

Fault symptom[s]

- The passenger compartment temperature does not correspond to the set value.
