BCM-0145

BCM-0145: Stability Control, Too Long Stability Control
Condition





Note! The Diagnostic Trouble Code (DTC) applies only to cars with Dynamic Stability And Traction Control (DSTC).

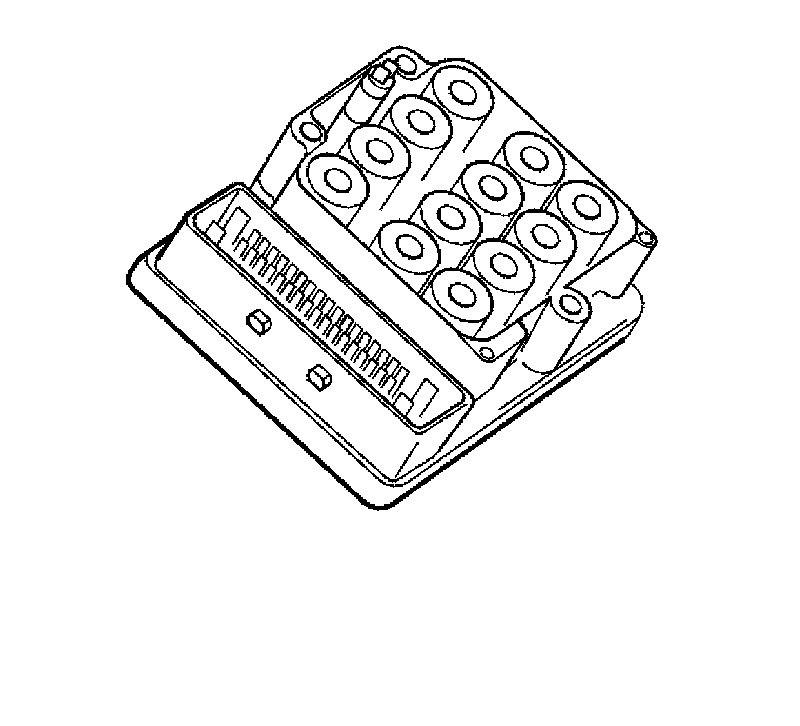

Diagnostic Trouble Code (DTC) BCM-0145 is stored If the Brake Control Module (BCM) registers that the stability function operates for more than 15 seconds non-stop.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, Refer to Description and Operation.

Possible source
- Incorrectly installed steering wheel
- Incorrect wheel alignment
- Loose or incorrectly installed active yaw control sensor
- Defective active yaw control sensor.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
