BCM-0130

BCM-0130: Brake Pressure Sensor 1, Signal Too Low
Condition





Note! The Diagnostic Trouble Code (DTC) applies only to cars with Dynamic Stability And Traction Control (DSTC).

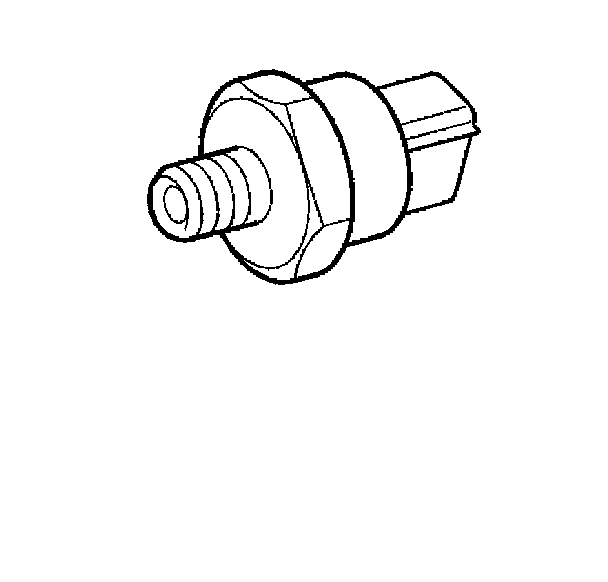

The brake pressure sensors provide the brake control module with signals indicating the pressure in the brake system. Diagnostic Trouble Code (DTC) BCM-0130 or BCM-0133 is stored (depending on the sensor) if the control module registers that the signal from one of the brake pressure sensors is incorrect.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, Refer to Description and Operation.

Possible source
- Open-circuit in the wiring
- Short-circuit to ground or supply voltage in the wiring
- Defective pressure sensor
- Internal fault in the control module.

Fault symptom[s]
- The anti-spin warning lamp is lit
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function
