BCM-0118

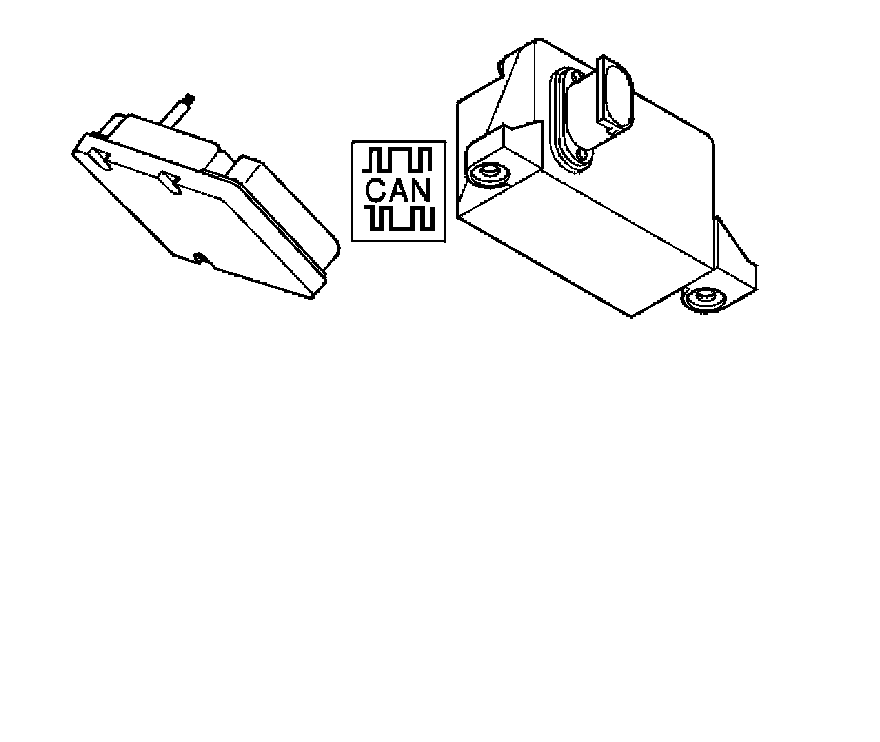

BCM-0118: Power Supply For The Active Yaw Control Sensor, Voltage Too High
Condition





Note! The Diagnostic Trouble Code (DTC) applies only to cars with Dynamic Stability And Traction Control (DSTC).

Diagnostic Trouble Code (DTC) BCM-0118 is stored if the Brake Control Module (BCM) registers that the power supply from the active yaw control sensor exceeds 17 Volts.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, Refer to Description and Operation.

Possible source
- Short-circuit to supply voltage in the power supply cable
- Internal fault in the active yaw control sensor.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
