BCM-0117

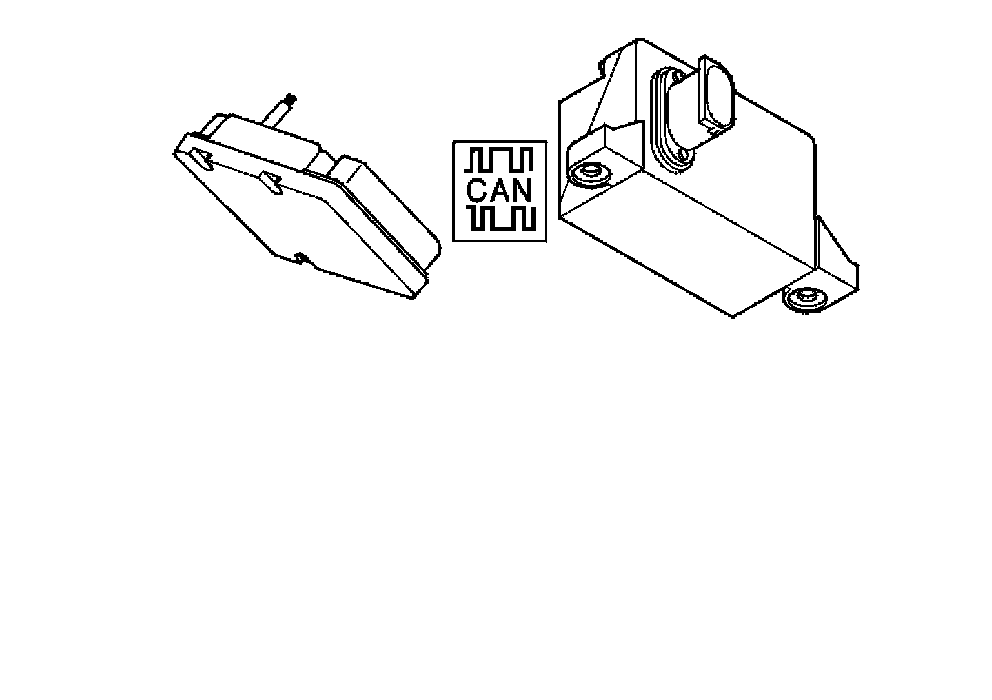

BCM-0117: Communications With The Active Yaw Control Sensor, An Incorrect Active Yaw Sensor Has Been Installed
Condition





There are two different active yaw control sensors. One is for two wheel drive cars, the other is for four wheel drive cars. Diagnostic Trouble Code (DTC) BCM-0117 is stored if the Brake Control Module (BCM) registers that the installed active yaw control sensor is not correct for this car.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, Refer to Description and Operation.

Possible source
- An incorrect active yaw control sensor had been installed.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
