BCM-0112

BCM-0112: Active Yaw Control Sensor, Sensor Not Calibrated
Condition





Note! The Diagnostic Trouble Code (DTC) applies only to cars with Dynamic Stability And Traction Control (DSTC).

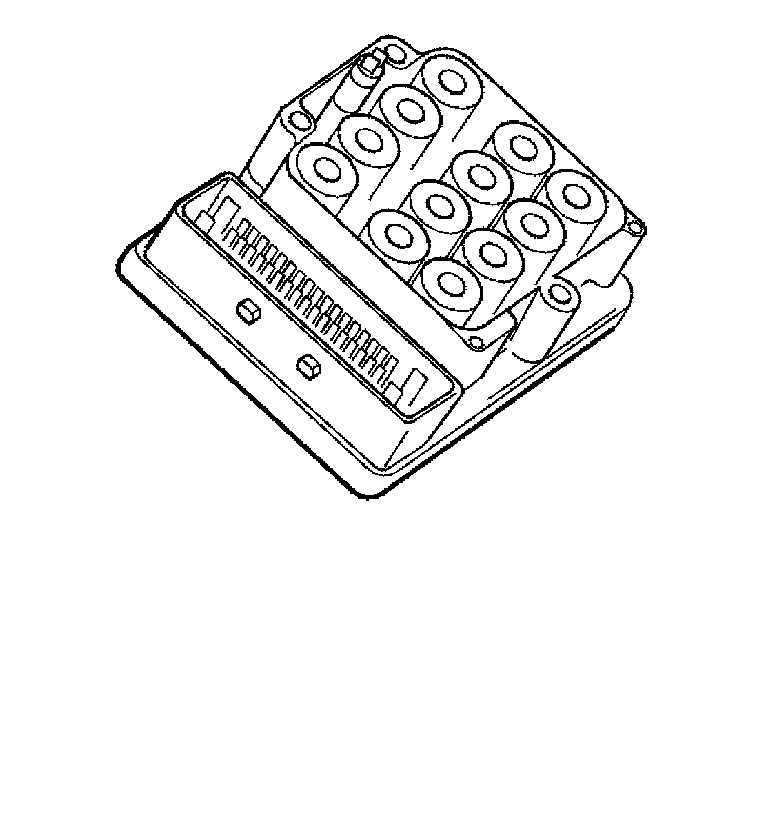

When calibrating the sensors included in the stability function (active yaw control), a check sum is controlled in the Brake Control Module (BCM). At start up, the control module checks the stored check sum against a calculated check sum.
Diagnostic Trouble Code (DTC) BCM-0112 is stored if the check sums do not correspond.
The Diagnostic Trouble Code (DTC) can be diagnosed while the ignition is switched on.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, Refer to Description and Operation.

Possible source
- Defective control module.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
