BCM-0065

BCM-0065 Stop Lamp Switch, Faulty Signal
Condition





Note! Only applies to four wheel drive cars with TRACS (traction control system).

The brake control module compares the signals with each other in order to detect a faulty signal from the stop lamp switch or the pedal position sensor. Diagnostic Trouble Code (DTC) BCM-0065 is stored if the control module registers a faulty signal from the stop lamp switch or the pedal position sensor.

Substitute value
- Traction control is blocked.

Hint: For information about brake system abbreviations, Refer to Description and Operation.

Possible source
- Short-circuit to ground or supply voltage in the signal cable for the stop lamp switch

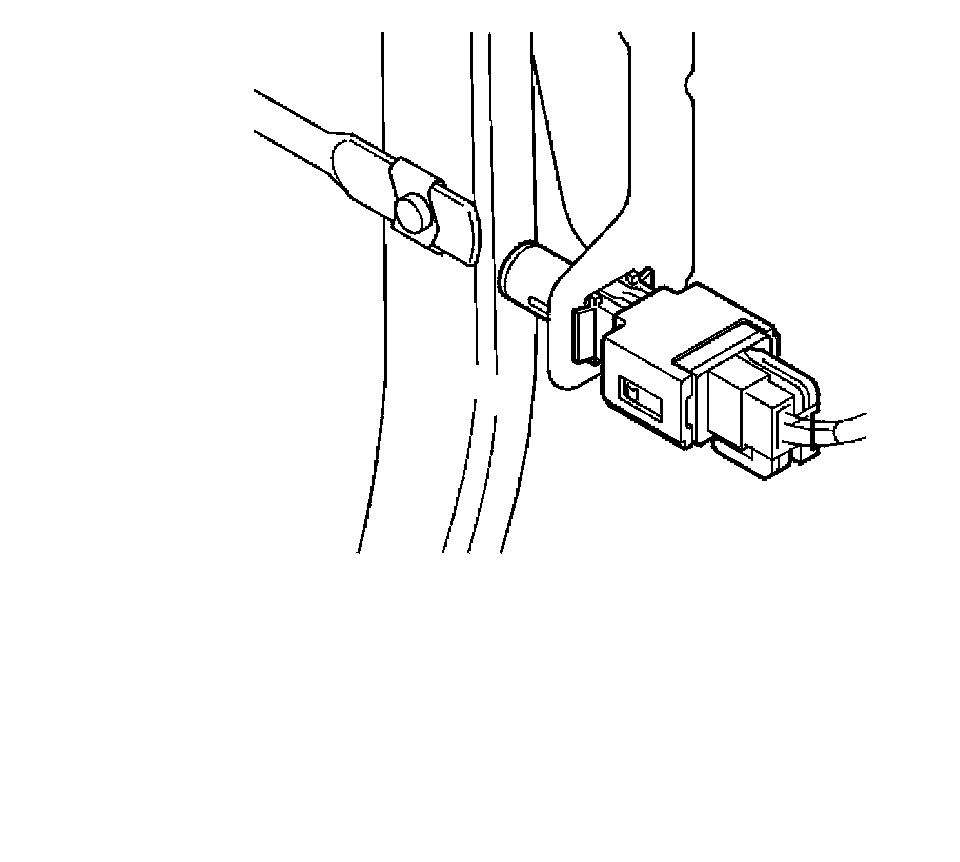

- Defective stop lamp switch
- Defective pedal position sensor.

Fault symptom[s]
- Anti-spin does not function.
