BCM-0058

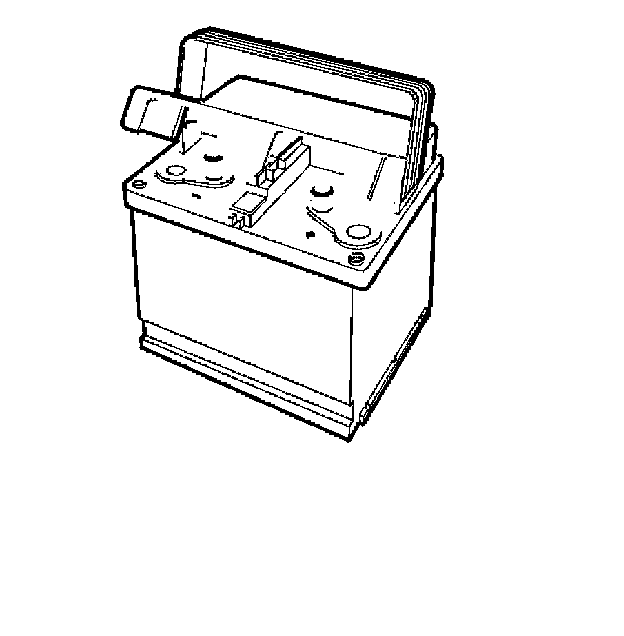

BCM-0058 Power Supply, Voltage Too High
Condition





Diagnostic Trouble Code (DTC) BCM-0058 is stored if the control module registers that the battery voltage is above 18 Volts. The Diagnostic Trouble Code (DTC) can be diagnosed when the ignition is switched on.

Substitute value
- The ABS is blocked
- Electronic Brake force Distribution is blocked
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked
- Brake assistance is blocked.

Hint: For information about brake system abbreviations, Refer to Description and Operation.

Possible source
- fault in the charging system.

Fault symptom[s]
- General warning lamp lit
- The ABS warning lamp is lit
- The warning lamp for brake circuit not functioning is lit
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- The ABS system does not function
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
