Adjusting the Position of the Steering Wheel

Adjusting the position of the steering wheel

Special tools:
998 8695 TEST DEVICE 998 8695 Test Device

Caution! Cars with DSTC systems. When working on the steering or wheel alignment, the adaptation of the steering wheel angle must be set to zero using the diagnostic tool. Test drive. See Test Drive Form (DSTC (dynamic stability and traction control) /brake control module), description Test Drive Form (DSTC (Dynamic Stability And Traction Control) /Brake Control Module), Description.

Checking the steering wheel position
- Drive the car straight forward and check that the steering wheel is in the "straight ahead" position
- If the steering wheel position is incorrect adjust as follows.

Adjusting the steering wheel position

Remove the steering wheel
- Remove the driver's airbag module. See Airbag driver and passenger (SRS), replacing Service and Repair.




- Remove the locking screw from the ""parking hole"" in the steering wheel. Install the screw in the contact reel.




- Remove the steering wheel screw
- Ensure that the front wheels and steering wheel are in the straight-ahead position
- Remove the steering wheel.

Note! Take care to ensure that the connector does not catch on the steering wheel during removal.

Zero the contact reel
Zero the contact reel. See Contact reel driver airbag module, resetting Reset Procedure.

Install the steering wheel and check the steering wheel position





Note! Ensure that front wheels are pointing straight ahead.

- Pull the connectors from the contact reel through the steering wheel
- Install the steering wheel carefully so that both catches on the contact reel are seated in the two recesses in the steering wheel hub
- Install the steering wheel screw. Use a new screw. Finger tighten.

Caution! Do not turn the steering wheel when it is on the steering shaft. Since the contact reel is locked, it will be damaged beyond repair if the wheel is turned in this situation.

- Remove the locking screw holding the contact reel. Install the contact reel in the parking hole in the steering wheel

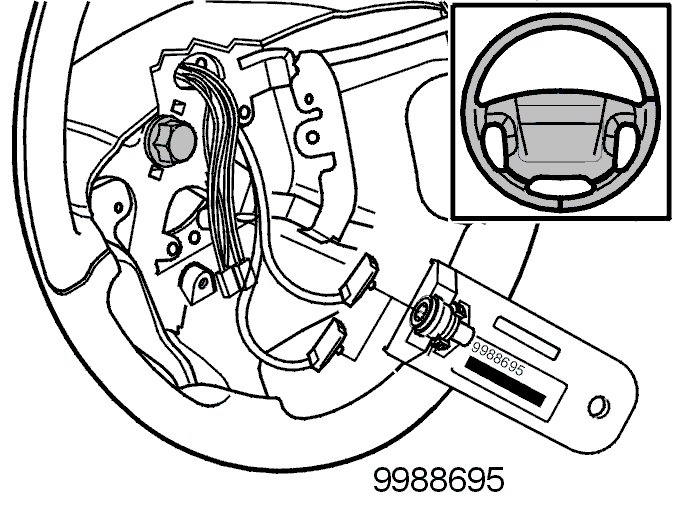

- Connect two tools 998 8695 TEST DEVICE 998 8695 Test Device to the contact reel cable
- Drive the car straight forward and check that the steering wheel is in the "straight ahead" position
- If the steering wheel position is incorrect repeat the adjustment.

Tighten the screw in the center of the steering wheel
- Remove tools 998 8695 TEST DEVICE 998 8695 Test Device
- Tighten the screw in the center of the steering wheel. Tighten to 35 Nm
- Check that the SRS light is extinguished, i.e. that no DTCs are present.
If a diagnostic trouble code (DTC) is displayed, see the relevant manual in VIDA.

Installing the driver's airbag module
To install the driver's airbag module, see Airbag driver and passenger (SRS), replacing Service and Repair.

Check the function
Ensure that the steering wheel turns easily and that the steering lock functions.
Check that no diagnostic trouble codes (DTCs) have been stored while the repair was carried out.
