Main Fuse, Cargo Compartment, Replacing

Main Fuse, Cargo Compartment, Replacing

Main fuse

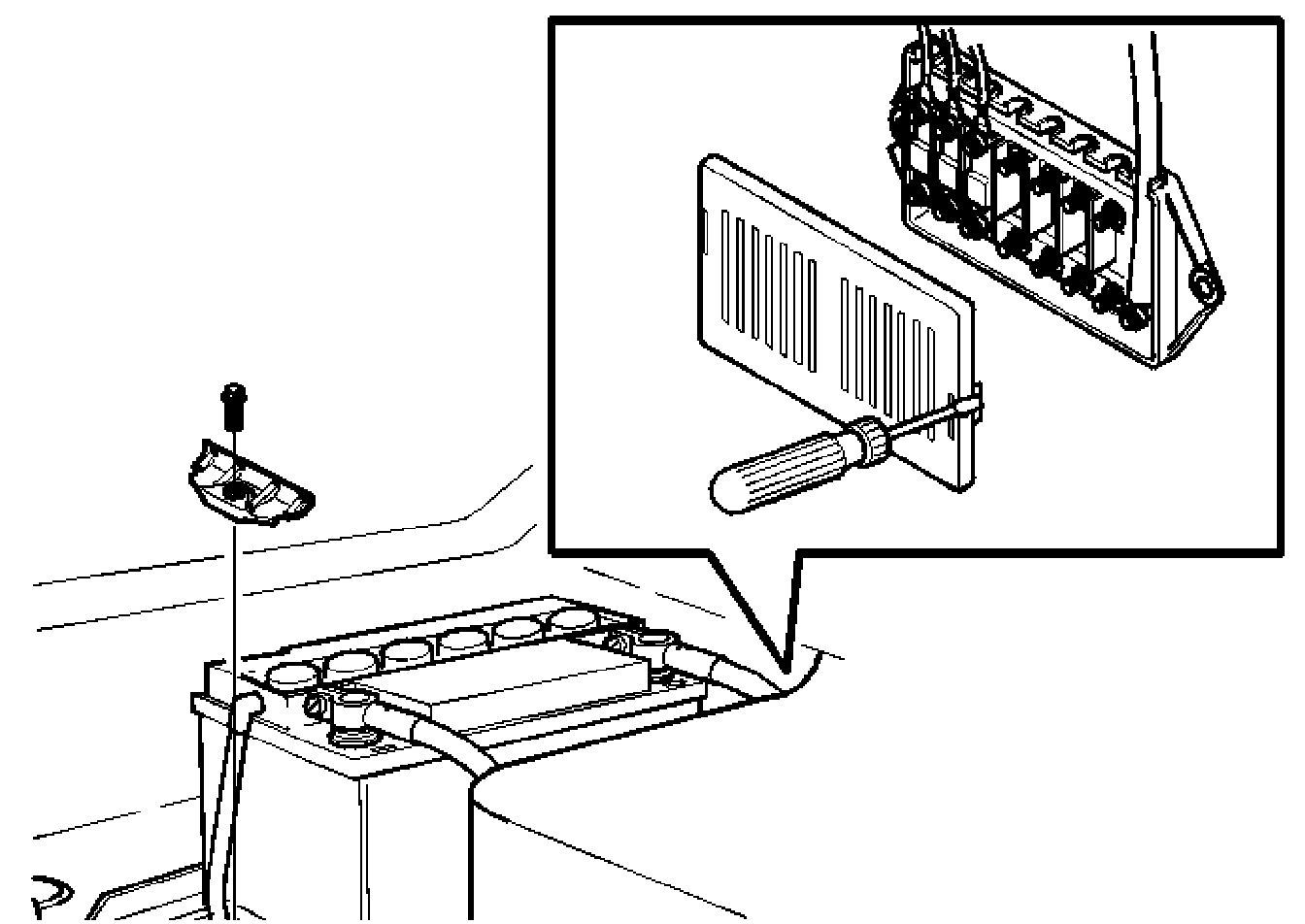

- Remove the battery..

CAUTION: When removing and installing the battery leads. See Note when disconnecting/connecting the battery lead.

- Remove the panel. Use a screwdriver
- Remove the nut
- Remove the main fuse.

Location of main fuse, 11E
For the location of the fuses, see:
1. Wiring diagram
2. Decals at both the integrated relay box and fusebox in the car
3. Pocket data book
4. Owner's Manual.

Installation

Main fuse
In reverse order.

CAUTION: When removing and installing the battery leads. See Note when disconnecting/connecting the battery lead.
