Adapter Cable, Reversing Warning System

Adapter Cable, Reversing Warning Systemm

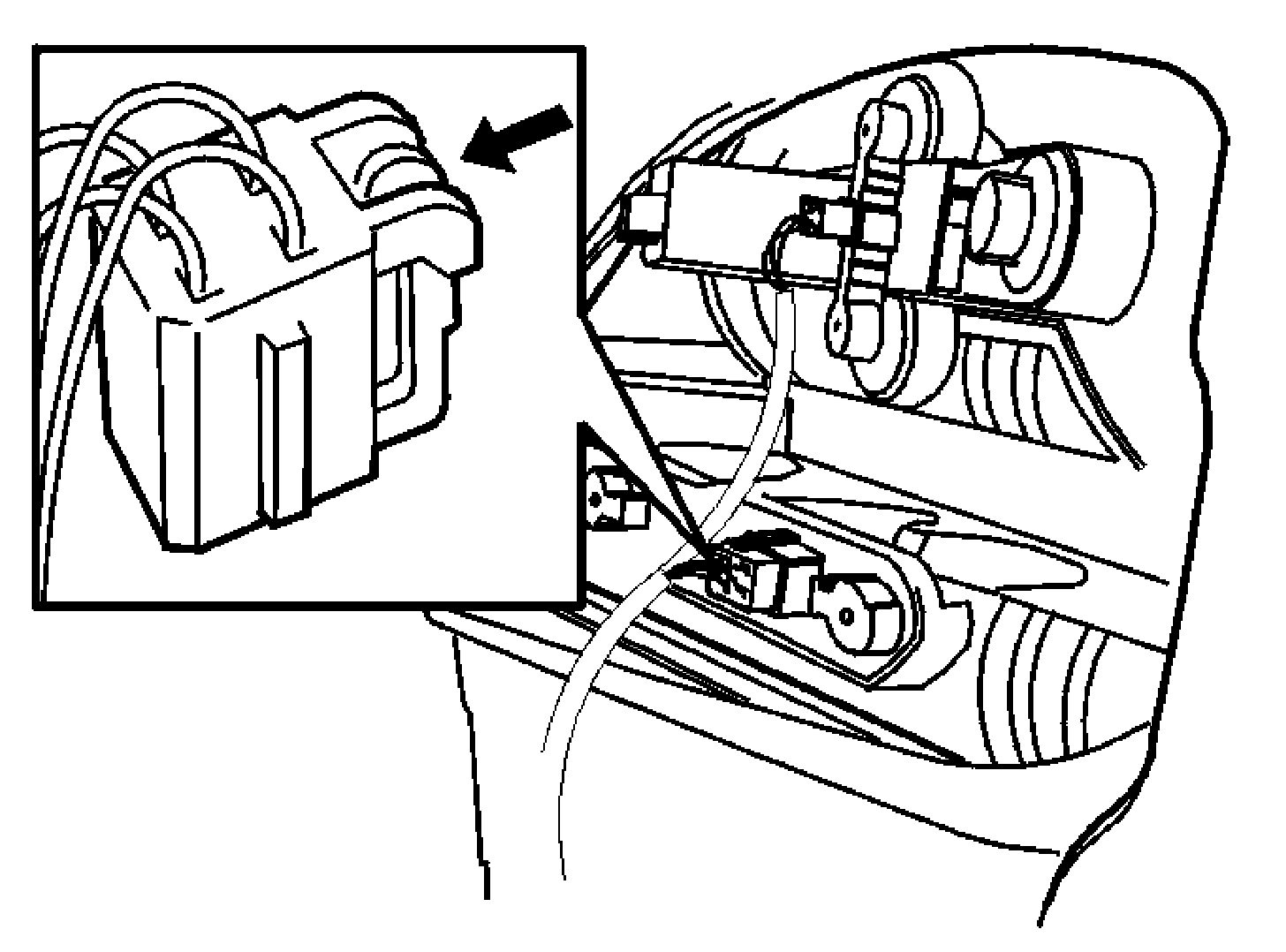

- Remove the lower grey four-pin connector in the right-hand tail lamp. Push in the catches on the side. Pull the connector out.

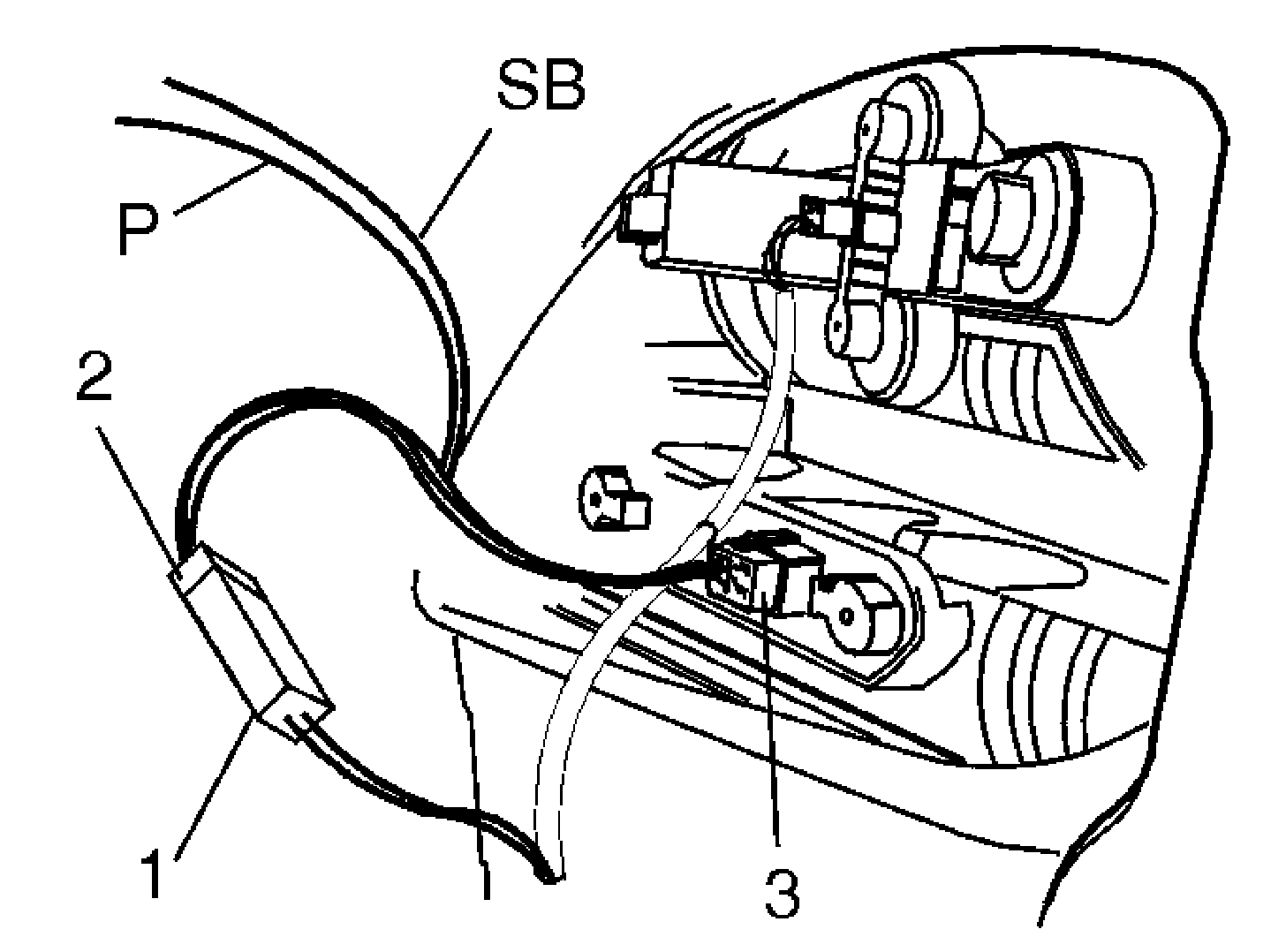

- Connect the connector (1) disconnected from the right tail lamp to the adapter cable connector (2)
- Connect the adapter cable connector (3) to the right-hand tail lamp.

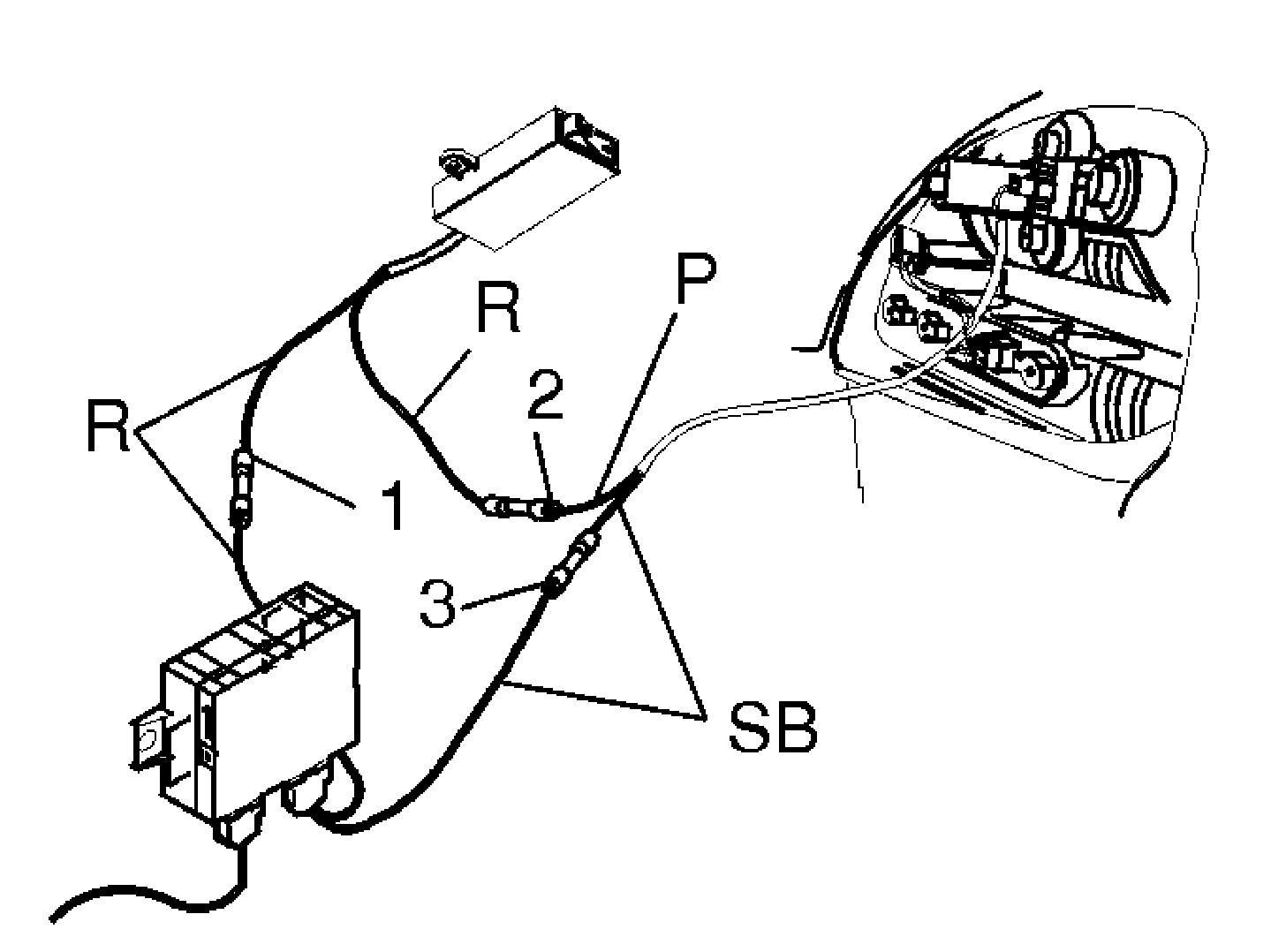

- Install a cable connector (1) between the red (R) cable from the switch and the red cable from the control module
- Install a cable connector (2) between the pink (P) adapter cable and the remaining red cable from the switch
- Install a cable connector (3) between the black (SB) adapter cable and the black cable from the control module.
