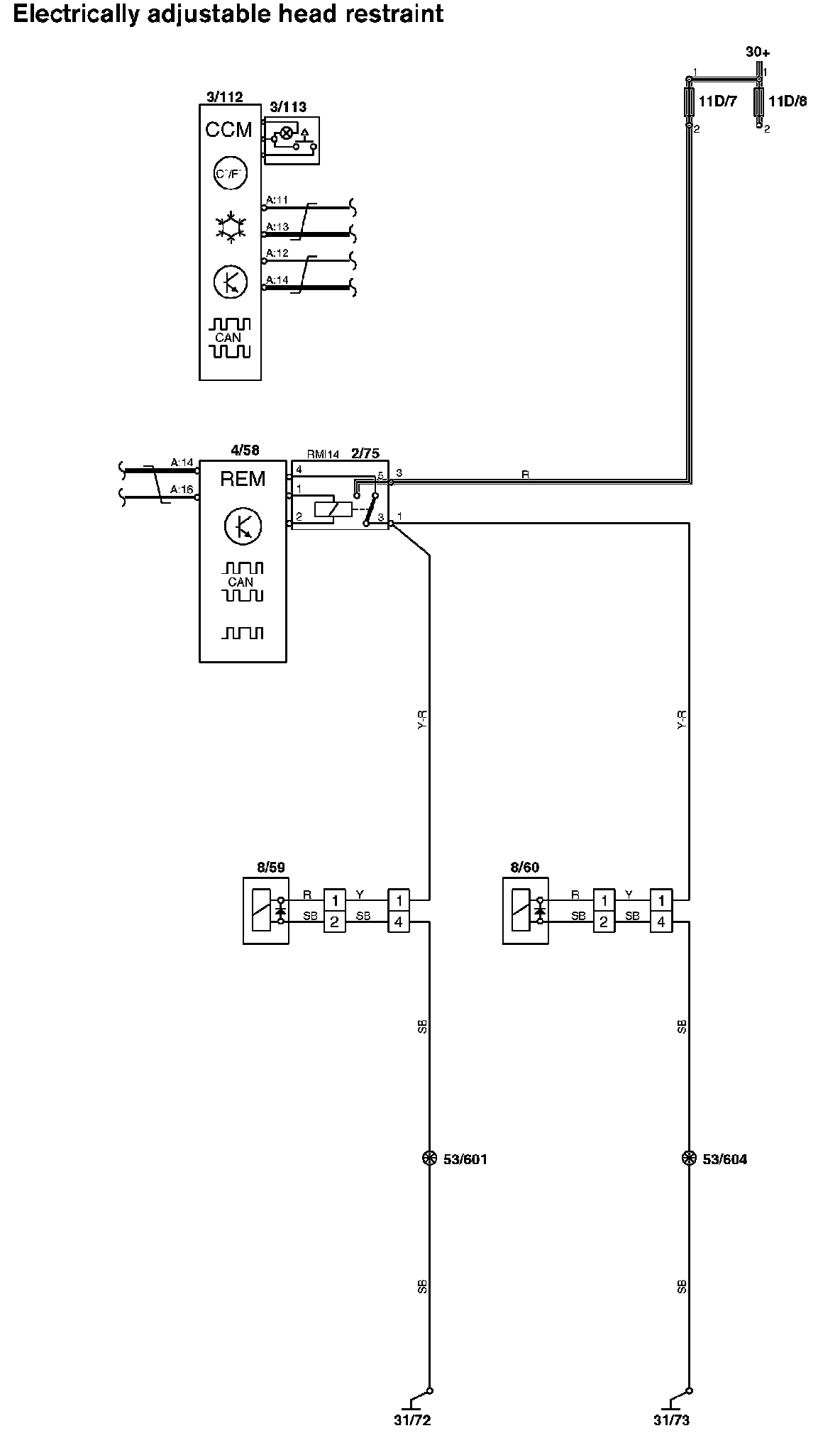

Electrically Adjustable Head Restraint



Electrically Adjustable Head Restraint

Electrically Adjustable Heat Restraint:





Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
