Wheel Stud / Lug Nut: Service and Repair

Wheel nuts anti-theft protected

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

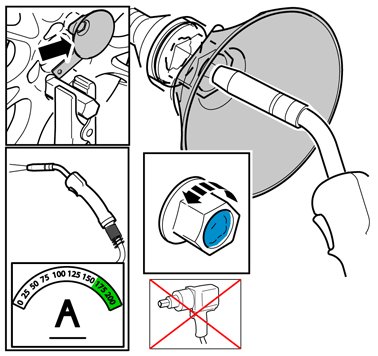

See information on welding, general. Refer to: Welding, general

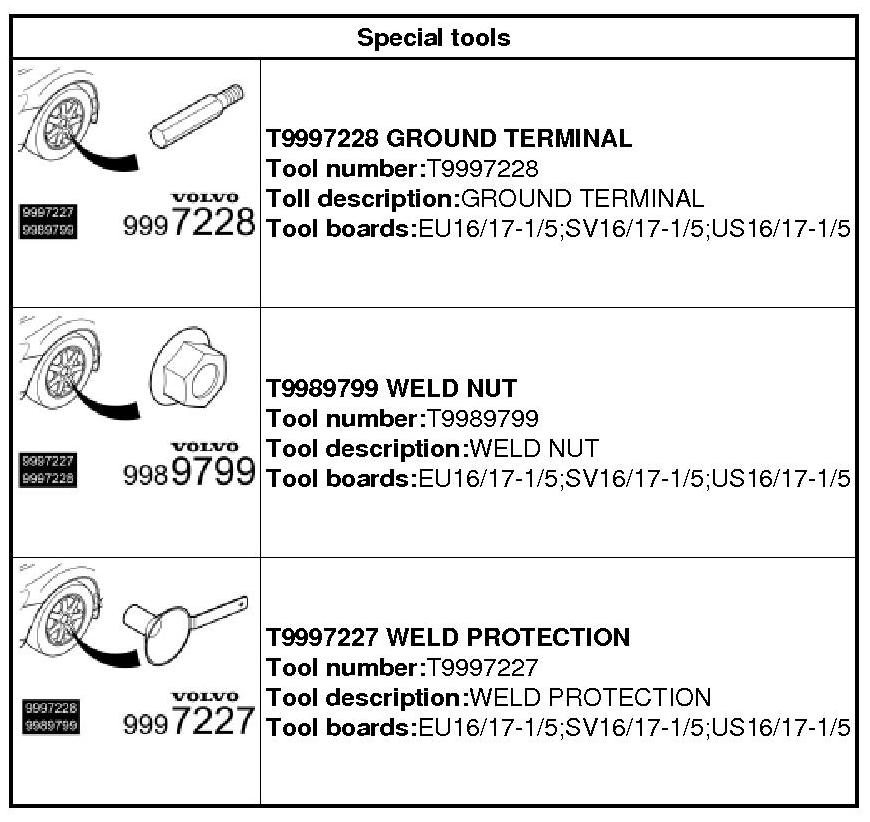

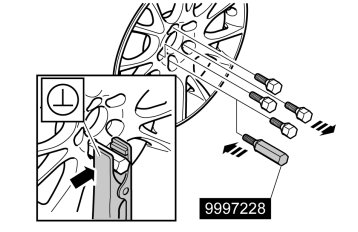

999 7228 Ground screw 999 7228 Ground Screw
Torque: Ground screw, 25 Nm

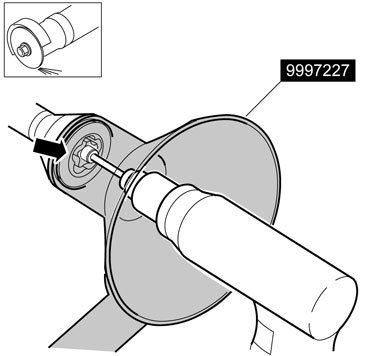

999 7227 Welding protection 999 7227 Welding Protection

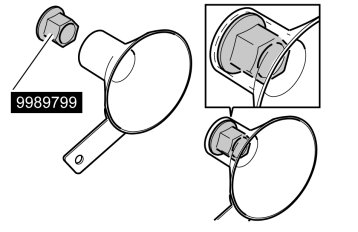

998 9799 Weld nut 998 9799 Weld Nut
