Part 2

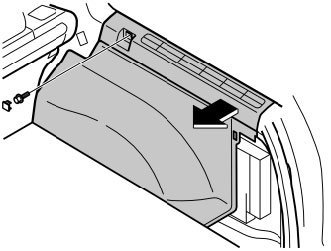

- Remove the right-hand side panel. First remove the cover and the screw at the front edge
- Pull the top of the panel out until the clips release
- Fold the panel inwards. Lift the panel out.







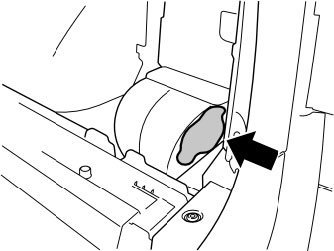

- Clean the shaded surface on the rear face of the right-hand air vent using a damp cloth. Allow to dry.

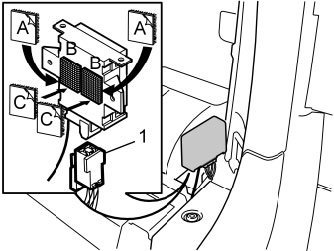

- Connect the six pin connector (1) to the control module
- Clean the reverse of the control module. Use a wet cloth. Allow to dry
- Remove the protective film from two of the Velcro straps of the same type (A)
- Press the Velcro straps into place underneath the control module (B)
- Press the two other Velcro straps on to the newly installed Velcro straps on the control module. Remove the protective film (C)
- Position the control module on the rear end of the right-hand air vent, behind the right-hand rear wheel well. Press the control module firmly into place.







- Remove the small insulation panel in front of the right-hand tail lamp by pulling forwards at points (A).







- Remove the loudspeaker grille on the right-hand D-post panel. First pry off the lower edge of the loudspeaker grille using a weatherstrip tool. Pull the grille out slightly and then downwards until the hooks at the top edge release.







- Carefully pry off the rear roof lighting using a weatherstrip tool
- Disconnect the connectors from the roof lighting. Place to one side.







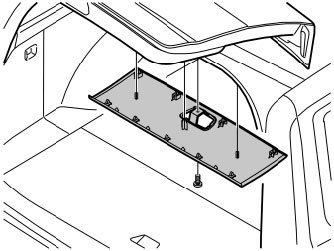

- Remove the rear headlining. First remove the screw in the roof lighting compartment. Pull off the front edge of the headlining to release the four clips. Then pull off the rear edge until the remaining clips release.

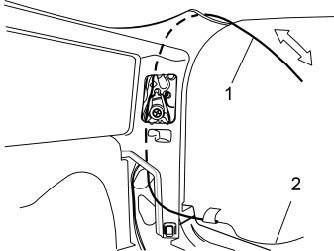

- Insert a piece of wire (1) at the top edge of the right-hand D-post panel. Pull out at the rear edge
- Tape the aerial (2) and the thin black single cable into position at the wire. Route it to the upper edge of the D-post panel.

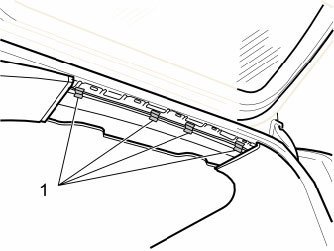

- Route the aerial cable along the rear edge on the inside of the roof. Tape into place using four pieces of tape (1).







- Pull the cable excess to the lower edge of the D-post panel

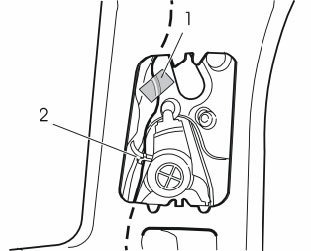

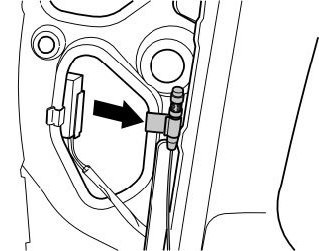

- Applies to cars with integrated D-post speakers: Tape the cable at point (1) and secure at the existing clamp (2)

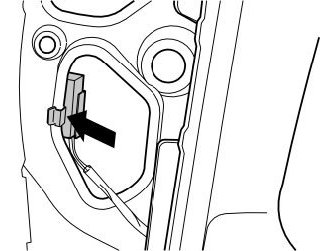

- Applies to cars without integrated D-post speakers: Tape at points (1) and (2).







- Take the relay and the large clip from the kit
- Press the relay into the relay holder
- Press the clip into the relay holder.







- Press the clip with the relay holder and relay inside the plate in front of the right-hand tail lamp.







- Press the small clip (from the kit) on to the indicator lamp.







- Press the clip and indicator lamp onto the outside of the plate, opposite the relay holder and relay as illustrated.

Applies to all models

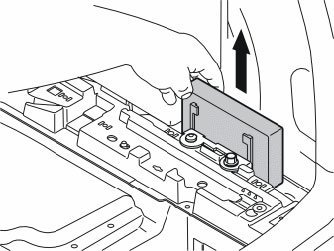

- Lift the accessory electronic module out of the bracket.

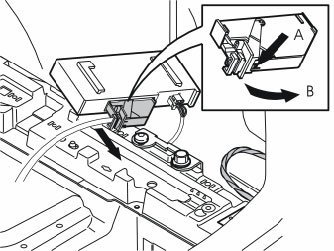

- Disconnect the large connector from the accessory electronic module. First press in catch (A). Pull the black lock handle (B) in the direction of the arrow until a click is heard.
- Disconnect the connector from the accessory electronic module (AEM).

Remove:

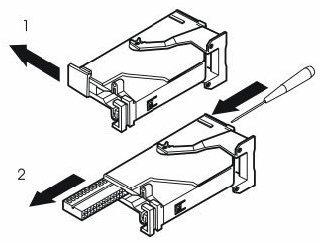

- the black catch (1) holding the black terminal pin in place in the connector by pulling in the direction of the arrow.
- the black terminal pin (2) by inserting a pointed object into the hole in the other end. Press the switch out.

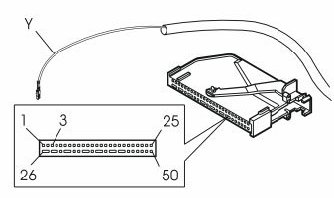

- Connect the small yellow cable from the control module to terminal 3 in the accessory electronic module (AEM) connector.

NOTE: The number markings can be found on the top and bottom of the black terminal pin. However, the markings are extremely small so be careful when installing the cable.

Reinstall:
- the black terminal pin in the connector. Lock into place using the catch
- the connector to the accessory electronic module (AEM). Lock into place using the black locking arm.

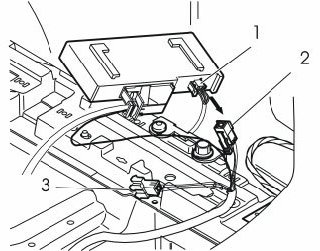

- Remove the connector (1) from the accessory electronic module (AEM)
- Connect the corresponding connector (2) on the T-cable on the larger cable harness to the accessory electronic module (AEM)
- Connect the remaining connector (3) on the T-cable to the connector disconnected from the accessory electronic module (AEM)
- Reinstall the accessory electronic module (AEM) in the bracket.

Illustration A applies to the S60 and the S80







- Take a tie strap (1) from the kit. Bind the cable excess and secure at the rear edge of the wheel arch.

Illustration B applies to the V70







- Collect all cable excess. Clamp the cable excess using a tie strap (1) from the kit. Position all the excess wiring at the rear, down behind the rear end of the air vent.

Applies to the S60 / S80
- Reinstall the right-hand side panel in the cargo compartment
- Turn the ignition key to position II
- Reconnect the battery negative lead
- Reinstall the cargo compartment carpet
- Reinstall the parcel shelf panel
- Applies to cars with child seat mountings: Reinstall the covers for the child seat mountings.

Applies to the S60
- Reinstall both C-post panels
- Reinstall the side bolsters.

Applies to the S60 / S80
- Fold both backrests into position
- Reinstall the seat cushion.

Applies to the V70
- Reinstall both side panels and the small insulation panel on the right-hand side of the cargo compartment
- Reinstall the rear headlining
- Connect and reinstall the roof lighting
- Reinstall the loudspeaker grille in the right-hand D-post panel
- Turn the ignition key to position II
- Reconnect the battery negative lead
- Reinstall both floor hatches
- Reinstall the right-hand side cushion
- Fold back the right-hand rear seat backrest and the seat cushion.
- Program the software. See the service information in VIDA
- Test the function according to the accessory manual
- Hand over the accessory manual.
