Silencer Exhaust Tip

Document information





5 cylinder, 2.41, 103 kW & 125 kW

INTRODUCTION

Note: Read through the entire text before carrying out any work.

^ The front page gives the date of this edition and the edition it replaces The second page shows the tools needed for
^ The second page shows the tools needed for the installation and the contents of the installation kit
^ The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
^ Cut out the text page in order to follow the illustrations and text at the same time.

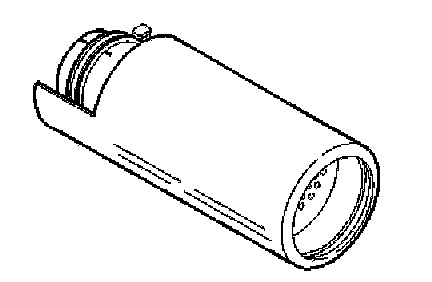

Tail pipe

Warning: The exhaust system will be hot if the car has been recently driven. Allow the exhaust system to cool before starting work.





^ Clean away any dirt from the rear silencer tail pipe.

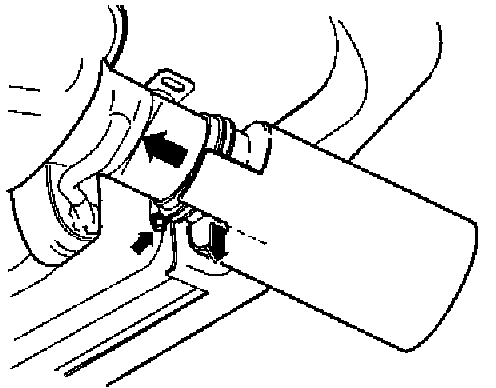

^ Thread the new tail pipe over the existing tail pipe for the silencer. Slide the end in towards the edge. The bottom flange edge on the new tail pipe must be in the "6 o'clock" position (straight down) as illustrated

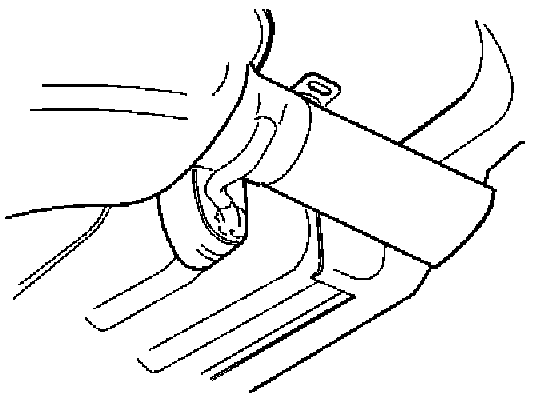

^ Tighten the tail pipe using the nut.
