System Diagram

Engine Management System

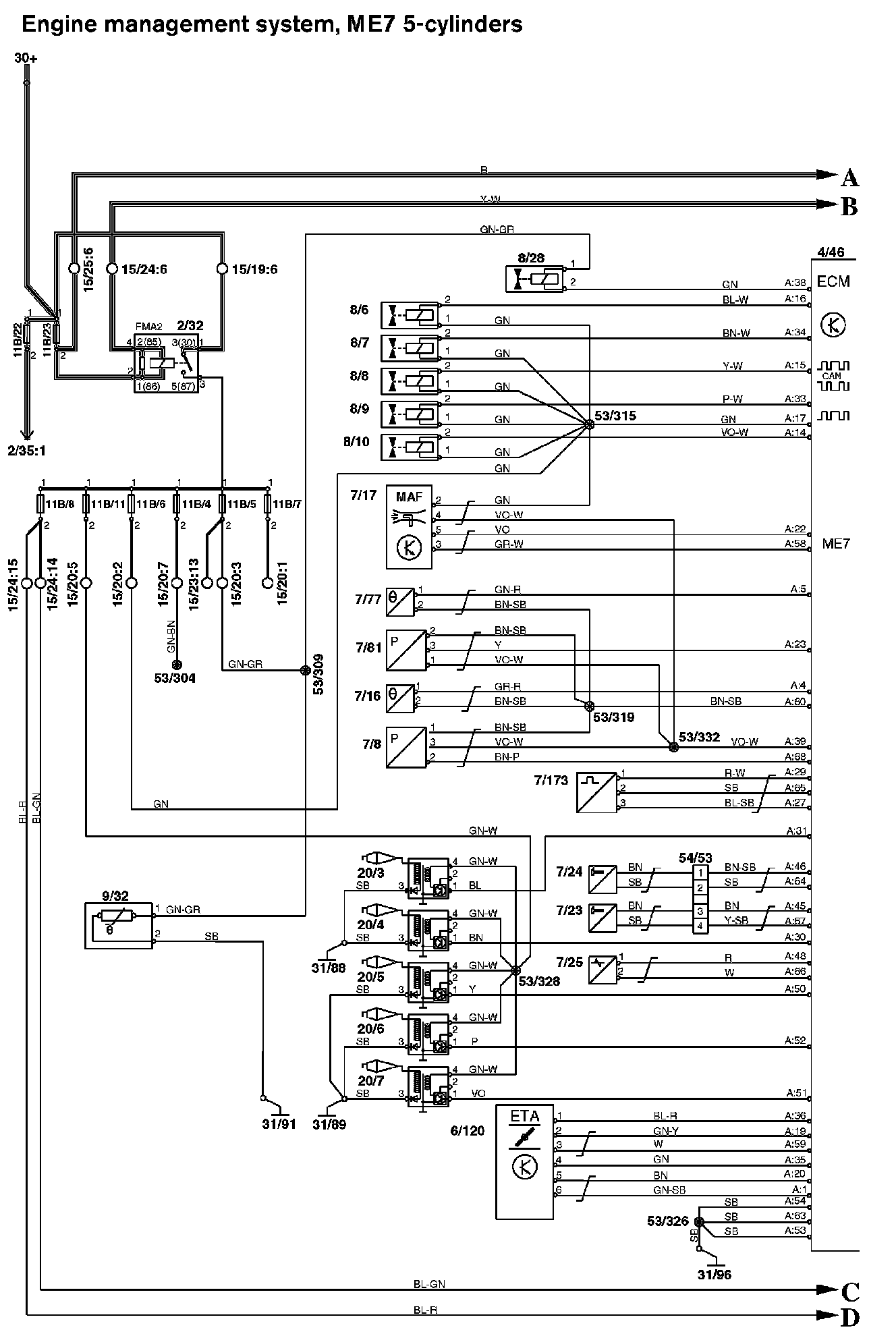

Engine Management System - Part 1:

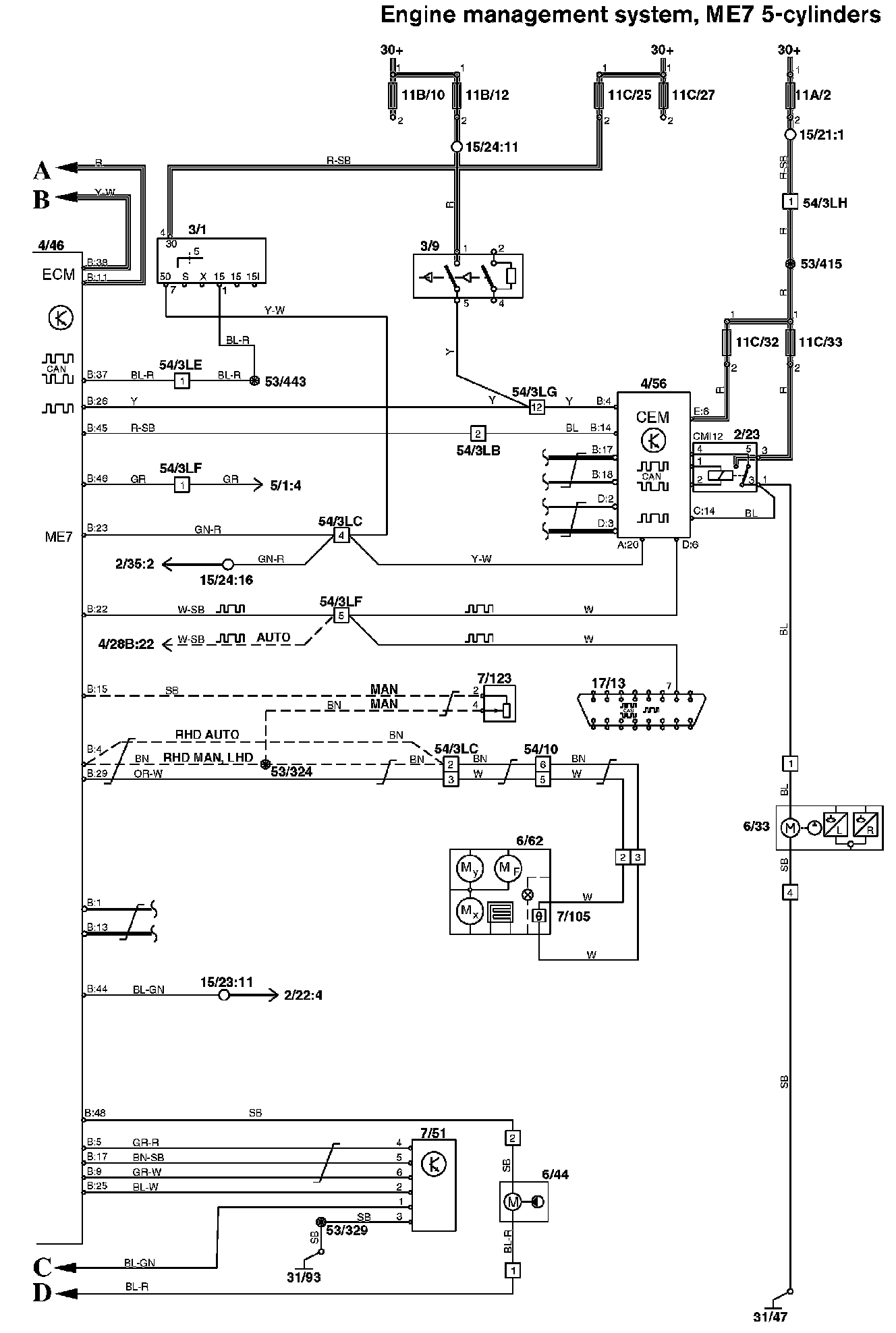

Engine Management System - Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
