Home >> Volvo >> 2002 >> S60 2.4T AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/3LC

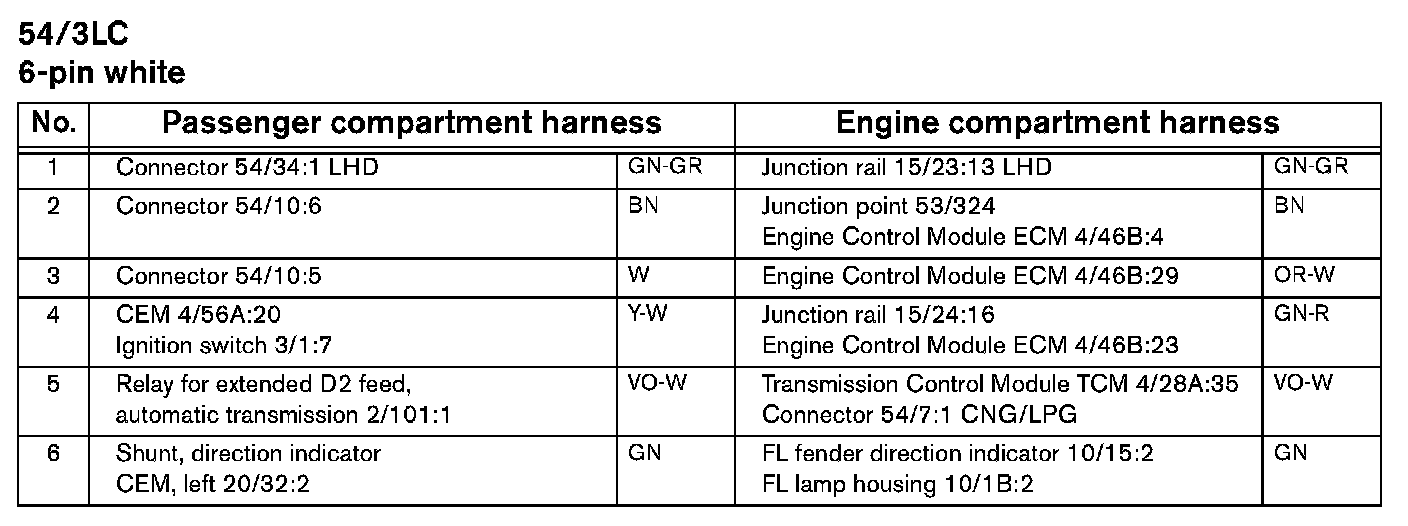

54/3LC

54/3LC Connectors:
