Upholstery, Head Restraint, Center Rear Seat, Replacing

Upholstery, head restraint, center rear seat, replacing

Upholstery

Removing upholstery

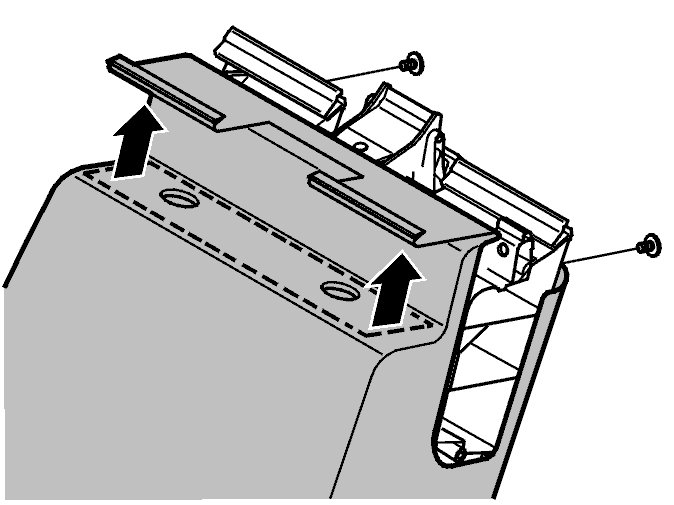

Disconnect the guide piece for the head restraint. Remove the upholstery.





Remove:
- the release handle fold-down function. See Release handle for the fold down function Release Handle for the Fold Down Function.

Installing upholstery

Install:
- the handle for the fold down function
- the upholstery
- the guide piece for the head restraint.

The head restraint

Removing the head restraint
Remove the side piece. See Backrest side piece Backrest Side Piece.

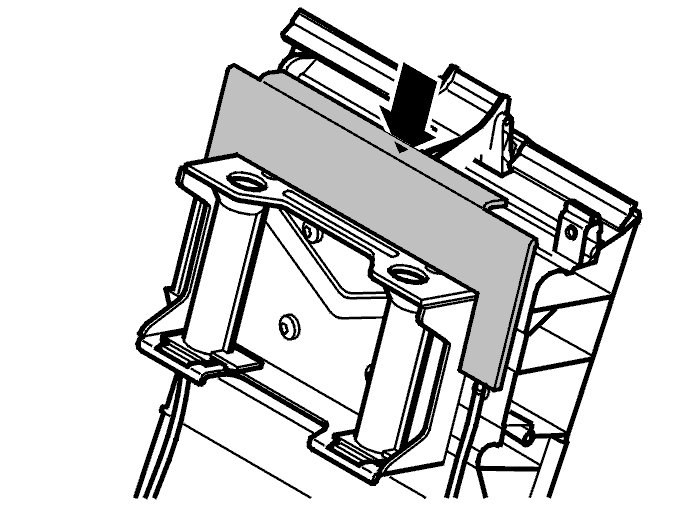

Unhook the upholstery.

Installing the head restraint
Install the upholstery.
Install the side piece. See Backrest side piece Backrest Side Piece

Stop spring for the head restraint

Removing the stop spring




Release the spring. Pull out the head restraint.

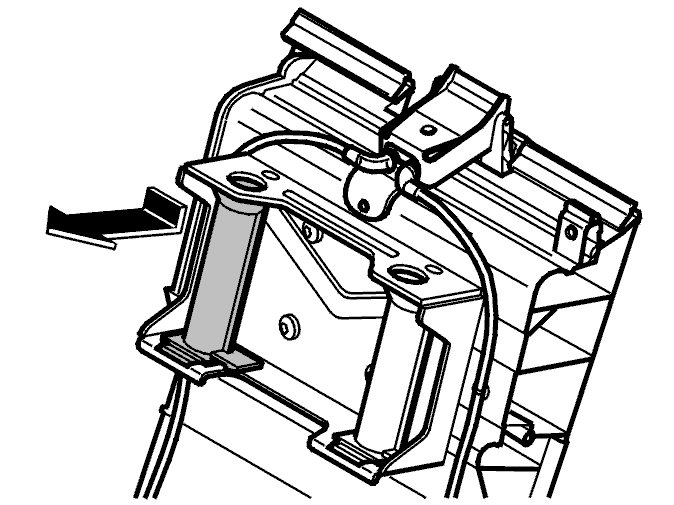

Remove the head restraint sleeves by lifting the underside.
Remove the stop spring.
Disconnect the guide piece. Remove the upholstery.

Installing the stop spring

Install:
- the upholstery
- the guide piece
- the stop spring
- the head restraint sleeves.
