Power Passenger's Seat



Power Passenger Seats

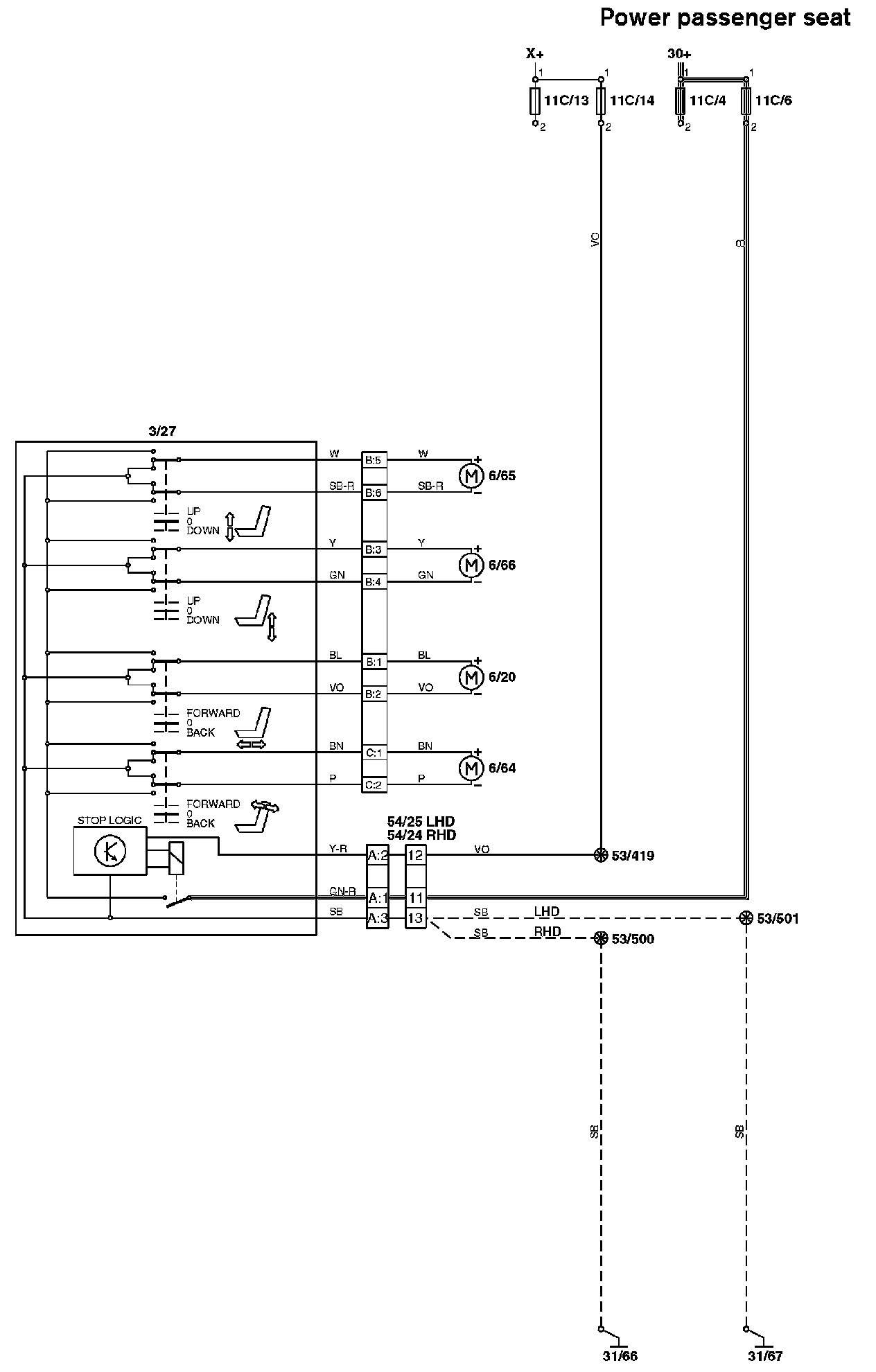

Power Passenger Seat:





Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
