Padded Neck Cushion, Integrated Child Seat, Central Position













Padded neck cushion, integrated child seat, central position






Padded neck cushion, integrated child seat, central position

Note! The foam bodies must be removed when washing. See the cleaning advice on the upholstery.

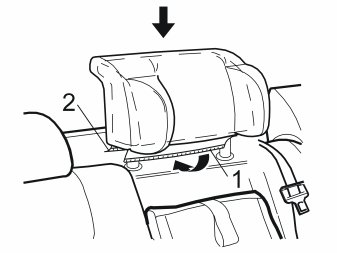

- Lift up the head restraint.
- Pull the padded upholstery down over the head restraint.
- Pull the lug (1) under the reverse of the lug (2). Press the lug (2) so that the Velcro strips fasten. On the 850 for example, it may be easier to pull the padded upholstery over from the bottom and work upwards.

- Adjust the head restraint for optimal protection for the child's head.
