Front Door Treble Loudspeakers

Front door treble loudspeakers

Preparations





Note! Carry out the operation on both sides.

- Remove the clips (1) by pressing in the centre of the clips.
- Remove the cover (2) for the door handle. Use a weatherstrip tool. Start at the upper or lower edge
- Remove the two screws (3) from under the cover
- Remove the cover for the door mirror by pulling the cover (4) straight out
- Disconnect the door panel by sliding the panel upwards and unhooking the top edge.

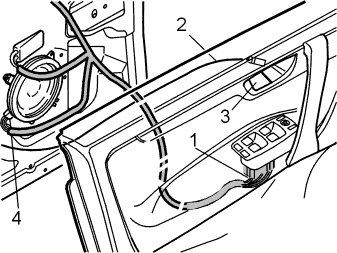

- Remove the three connectors from the module for the door controls (1) and from the loudspeaker (4)
- Remove the cable (2) from the door opener (3). First bend up the catches
- Remove the panel.

Installing and finishing work




- Remove the existing loudspeaker

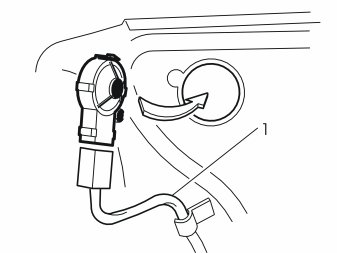

- Press the treble loudspeaker into the hole in the panel
- Connect the cable (1) to the treble loudspeaker.

Reinstall:
- the connectors to the loudspeaker and the module for the door controls
- the cable for the door opener
- the door panel and components.
