TV NTSC/PAL

TV NTSC/PAL


















TV NTSC/PAL

Note! Applies only to Europe: A new rear windshield must be installed if the present windshield does not have an integrated antenna.

Note! This accessory is connected to the car's electrical system. It requires software unique to the car.

Interior preparations




- Turn the ignition key to position O
- Cars with manual gearboxes: Remove the ignition key
- Disconnect the battery negative lead.

Note! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.




- Remove the seat cushion (1). First pull the front edge of the seat cushion up. Pull the cushion forwards. Then lift the seat cushion out.




- Fold both the rear backrests forward
- Remove the seat belts from the guides (1).




- Remove the clip (1) at the side of the left-hand side cushion
- Pull the top edge of the left front cargo compartment panel out to access the upper lock for the side cushion
- Repeat the operation on the right-hand side.




- Remove the left-hand side cushion. First press in the catches (1) at the top edge of the reverse of the side cushion. Pull the cushion out slightly
- Grasp the cushion using both hands. Twist counter-clockwise until the catches on the inside release
- Remove the side cushion. First pull out the upper edge of the side cushion. Then pull upwards
- Repeat the operation on the other side.




- Remove the cover and the screw for the left-hand C-post panel
- Repeat the operation on the other side.




- Remove the rubber strip at the rear edge on the left-hand rear door frame
- Grasp the top edge of the C post panel. Pull (A) the panel inwards until the three clips (1) release
- Then pull (B) the panel straight up. Place the panel to one side
- Repeat the operation on the other side.




- Carefully lift the front edge of the parcel shelf panel until the clips (1) release
- Lift up the panel further until the locating pins (2) release from their holes
- Pull out the parcel shelf. Lay the parcel shelf on the folded backrests.

Cargo compartment preparations




- Remove the cargo compartment carpet at the rear edge. First turn the two handles (1) 90°.




- Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet.




- Slide the entire cargo compartment carpet forward slightly. Twist slightly to remove the cargo compartment carpet through the tailgate opening
- Remove the cargo compartment carpet.




- Press the centres of the clips at the lower edge of the foldable side panel on the left-hand side until a click is heard
- Remove the two clips
- Remove the plastic nut at the front lower edge of the side panel.





Remove:
- the clips (1) in the left front side panel in the cargo compartment
- the panel. Place the panel to one side.




- Remove the cable (1) between the GPS antenna on the parcel shelf and the foremost of the three upper sockets in the upper sockets in the RTI control module
- Place the cable to one side. The amplifier will not be reused. A new cable harness is in the kit.




- Route the new cable harness (1) in the same way as the old harness
- Position the connectors for the cable harness at the C-posts and at the rear edge of the wheel house. See the illustration
- Press the cable harness into place in the parcel shelf with the existing clips
- Connect the connector to the GPS antenna.

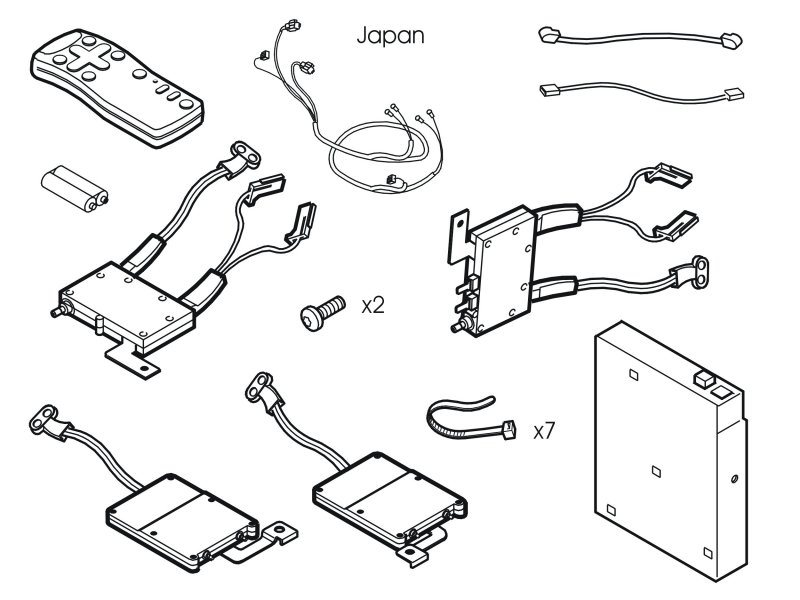

Applies to Japan
- Remove the ground lead for the rear windshield. First remove the screw (1). Remove the connector (2) from the rear windshield at the right-hand C-post
- Place the ground lead and the screw to one side. They will not be reused.

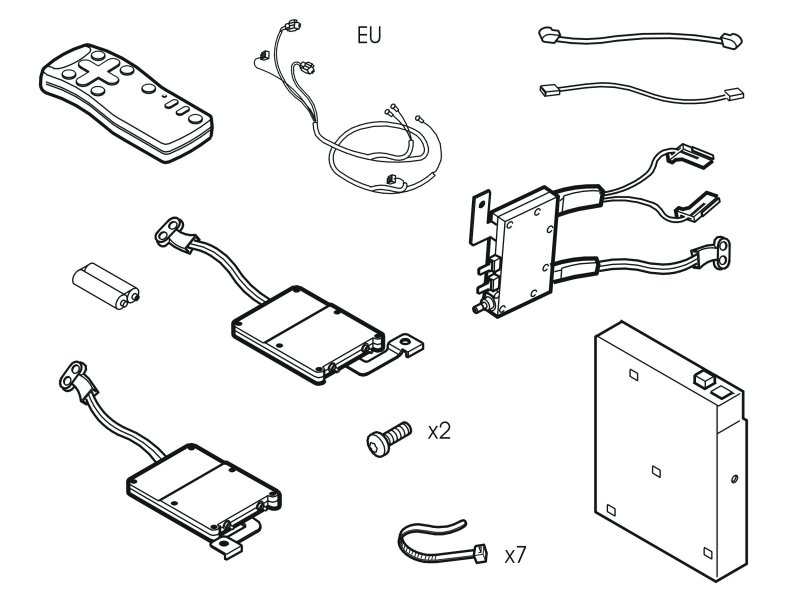

Applies to Europe
- Remove the screw (1). Remove the ground lead from the C-post. A new screw is included in the kit.




- Remove the cables (1, 2) for the existing antenna amplifier on the left C-post
- Remove the screw (3) and remove the antenna amplifier
- Place the antenna amplifier to one side. The amplifier will not be reused.




- Connect the new TV antenna amplifier (blue) to the new AM/FM antenna amplifier (blue) from the kit.

Applies to Japan
- Carry out the same operation with the green antenna amplifiers.

Applies to Europe
- For the EU only use the small green TV antenna amplifier.

Applies to Japan




- Install the new AM/MPX and TV antenna amplifiers (green) on the right C-post. Ensure that the antenna amplifier guide lugs engage in the two rectangular holes and in the small round holes
- Tighten the amplifiers
- Repeat the operation for the left-hand AM/FM and TV antenna amplifier (blue).

Applies to Europe




- Install the small green TV antenna amplifier for the right hand C post in the rear position with the ground lead cable terminal on top. Tighten the antenna amplifier
- Ensure that the amplifier guide lugs are in their relevant holes
- Repeat the operation for the left-hand AM/FM and TV antenna amplifier (blue).




- Reinstall the cables (1) (that were removed earlier) in the front antenna amplifier on the left C-post
- Connect the two single cables (2) (that were routed earlier) to the rear antenna amplifier on the left C-post
- Connect the cables (3, 4, 5) to the connectors on the rear windshield as illustrated.

Applies to Japan




- Connect the two single cables (1) (that were routed earlier) to the rearmost of the two amplifiers on the right C-post
- Connect the cables (2, 3, 4) to the connectors on the rear windshield as illustrated.

Applies to Europe




- Connect the single cable (1) (previously routed) to the front terminal in the TV antenna amplifier on the right C-post as illustrated
- Connect the cables (2) to the connectors on the rear windshield as illustrated.




- Clamp the cables on the parcel shelf, at the C-post and at the lead-in to the cargo compartment. See the arrows in the illustration.

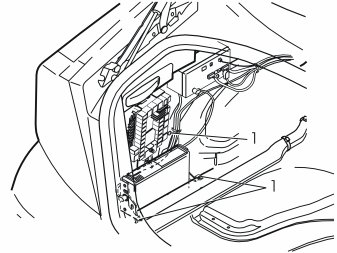

- Remove the three screws (1) holding the CD ROM changer and bracket at the body
- Lift up the unit and place it on the left rear side member.

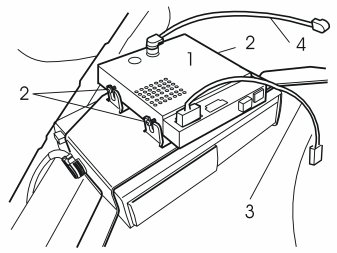

- Take the TV tuner (1) and the three screws (2) from the kit. Tighten the TV tuner on the reverse of the bracket for the CD ROM changer
- Connect the cable harness (3) with the green connector and the new DIN cable (4) to the TV tuner
- Reinstall the CD ROM changer and the TV tuner.

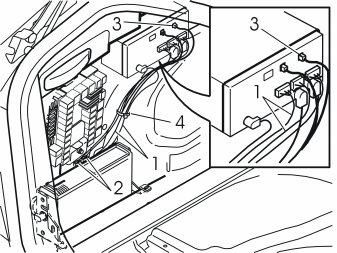

- Connect the two cables (1) from the TV tuner to the RTI control module
- Connect the two cables (2) routed from the parcel shelf to the TV tuner
- Connect the cable (3) from the parcel shelf to the RTI control module
- Clamp the cables with a tie strap (4) from the kit.

Reinstall:
- the parcel shelf panel
- the C-post panels
- the side cushions
- the backrests
- the seat cushion
- the panels in the cargo compartment.




- Turn the ignition key to position II
- Reconnect the battery negative lead
- Re-position the cargo compartment carpet
- Program the software according to the service information in VIDA.
