Steering Angle Sensor: Specifications

Signal Description, Control Unit For The Steering Wheel Angle Sensor (SAS)
The values in the table represent the values between the connections shown in column 1 and #A46 (ground), unless otherwise stated in brackets.

NOTE: It is important that the test box is connected and the ground points checked before testing begins.

U = DC voltage (V)
Ubat = battery voltage (V)
I = amperage (A)
Ulow = voltage close to 0 V

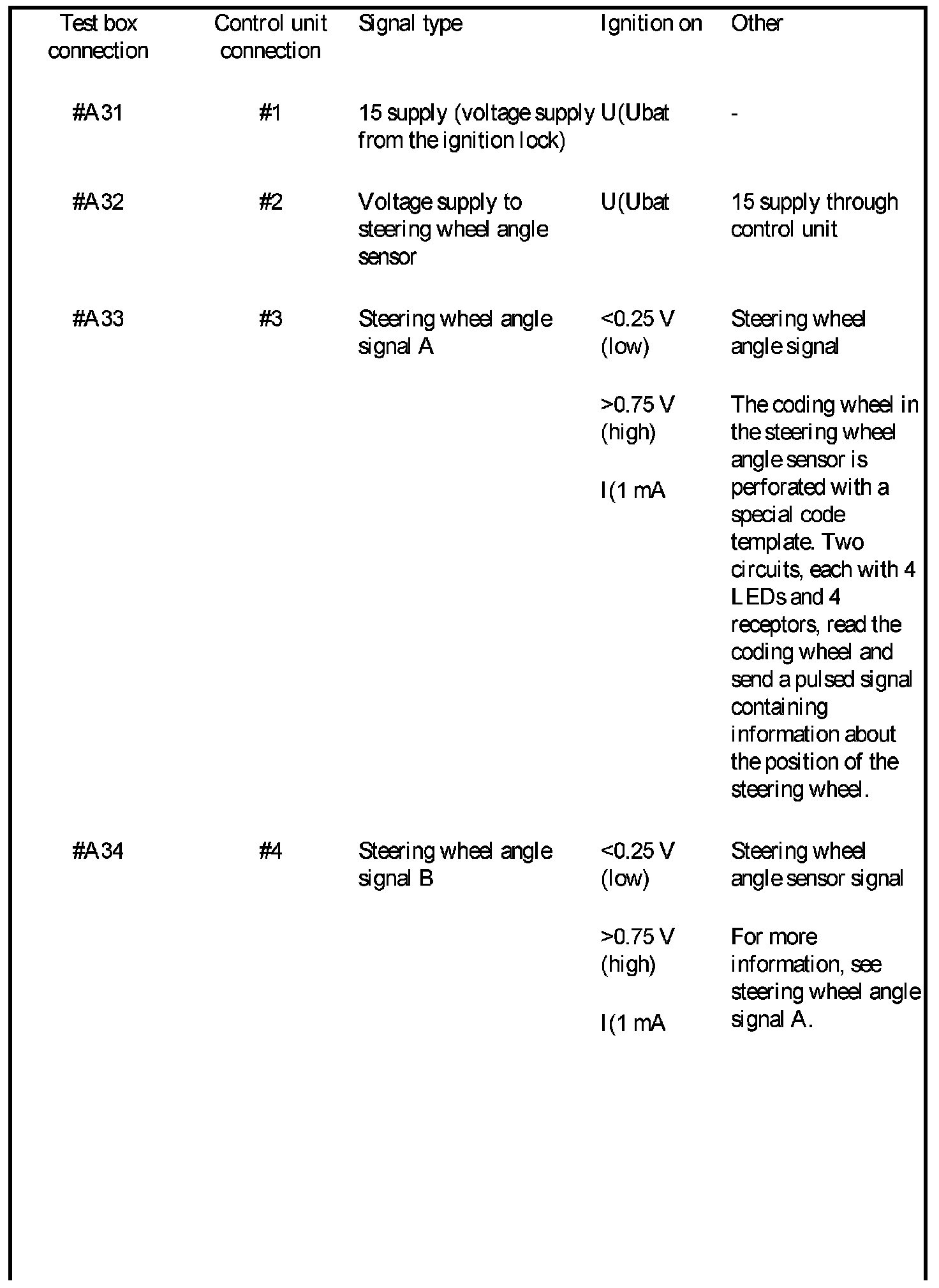

#A31 - #A34:

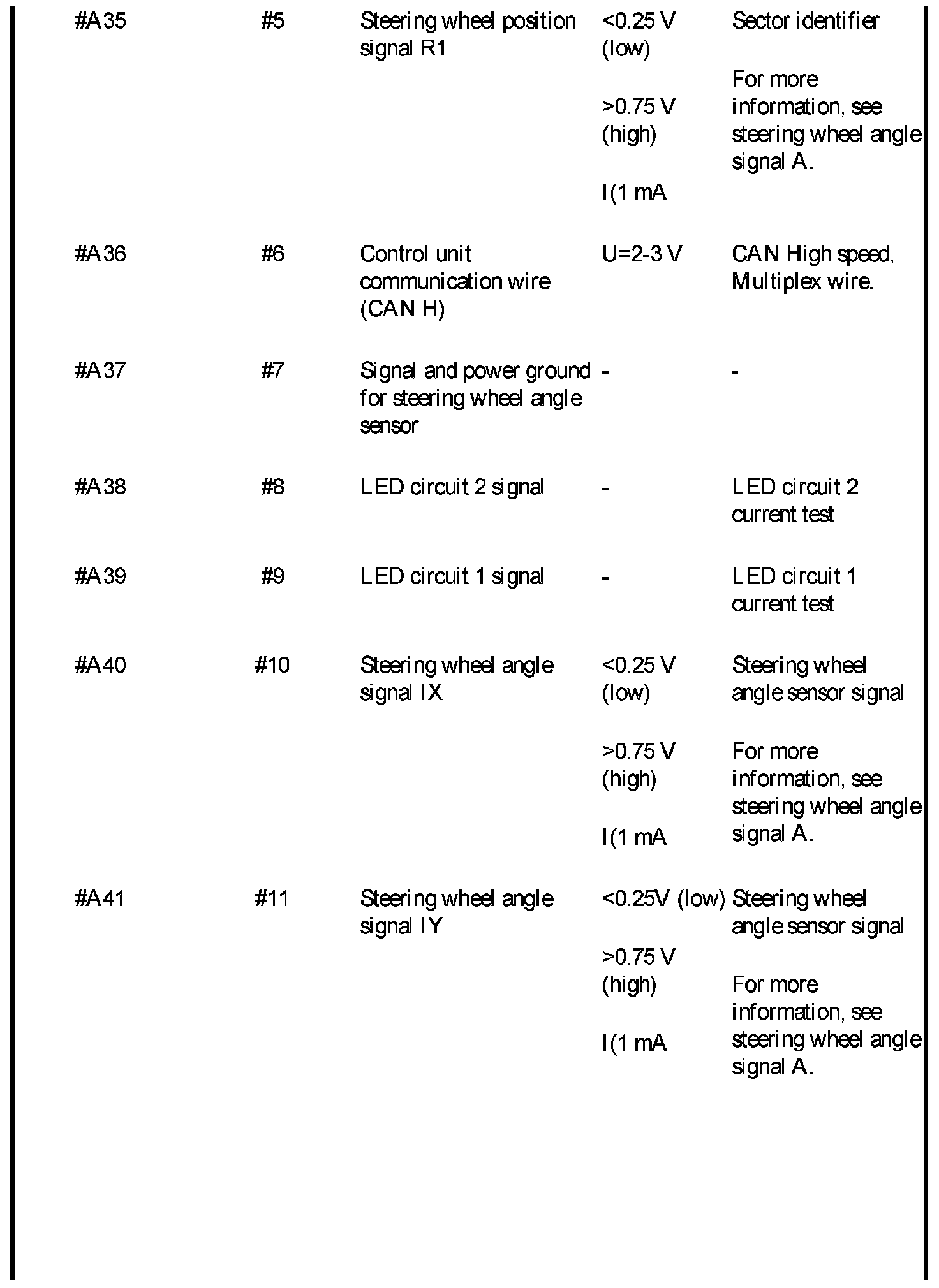

#A35 - #A41:

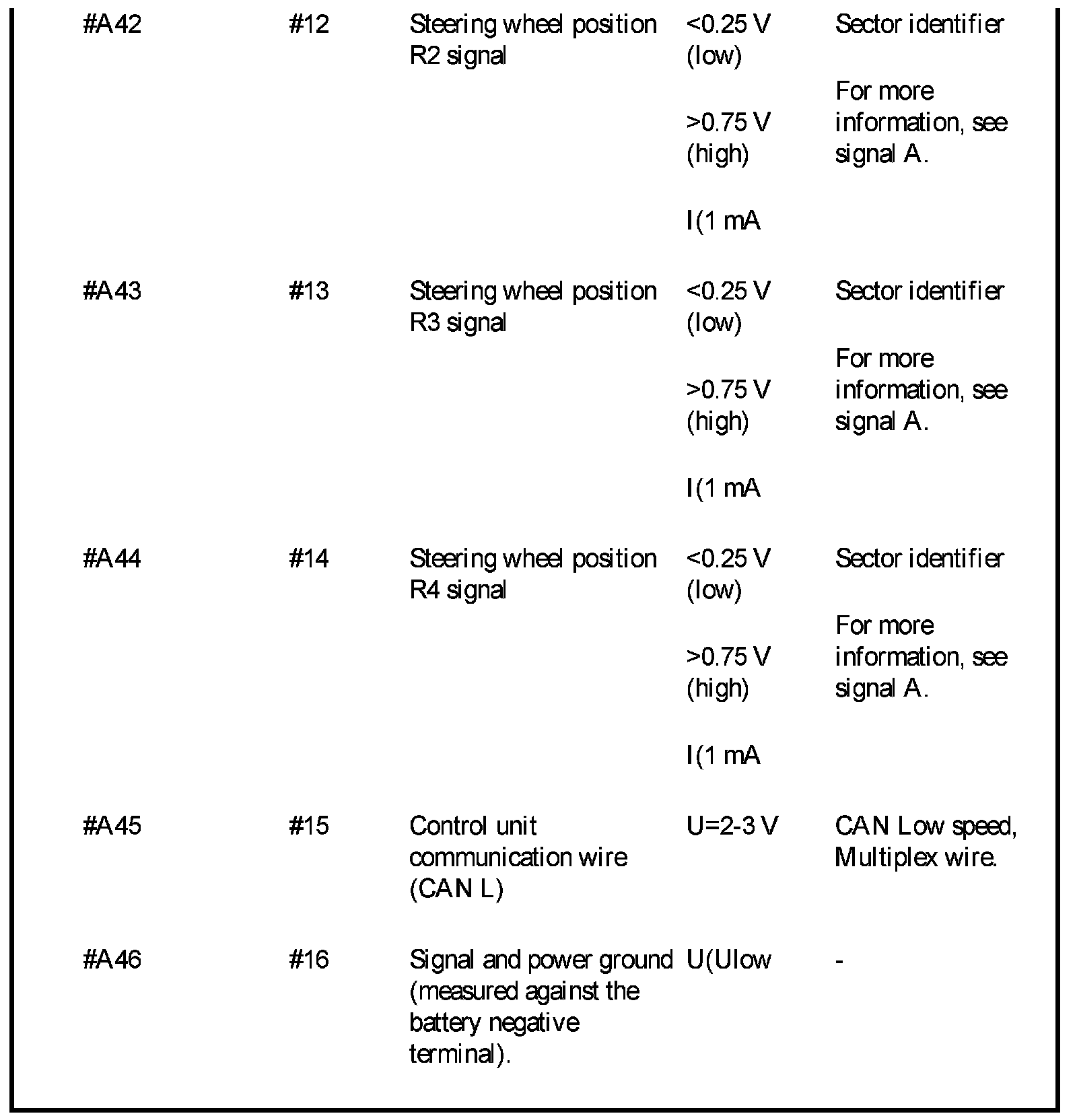

#A42 - #A46:
