Seat Belt Buckle: Service and Repair

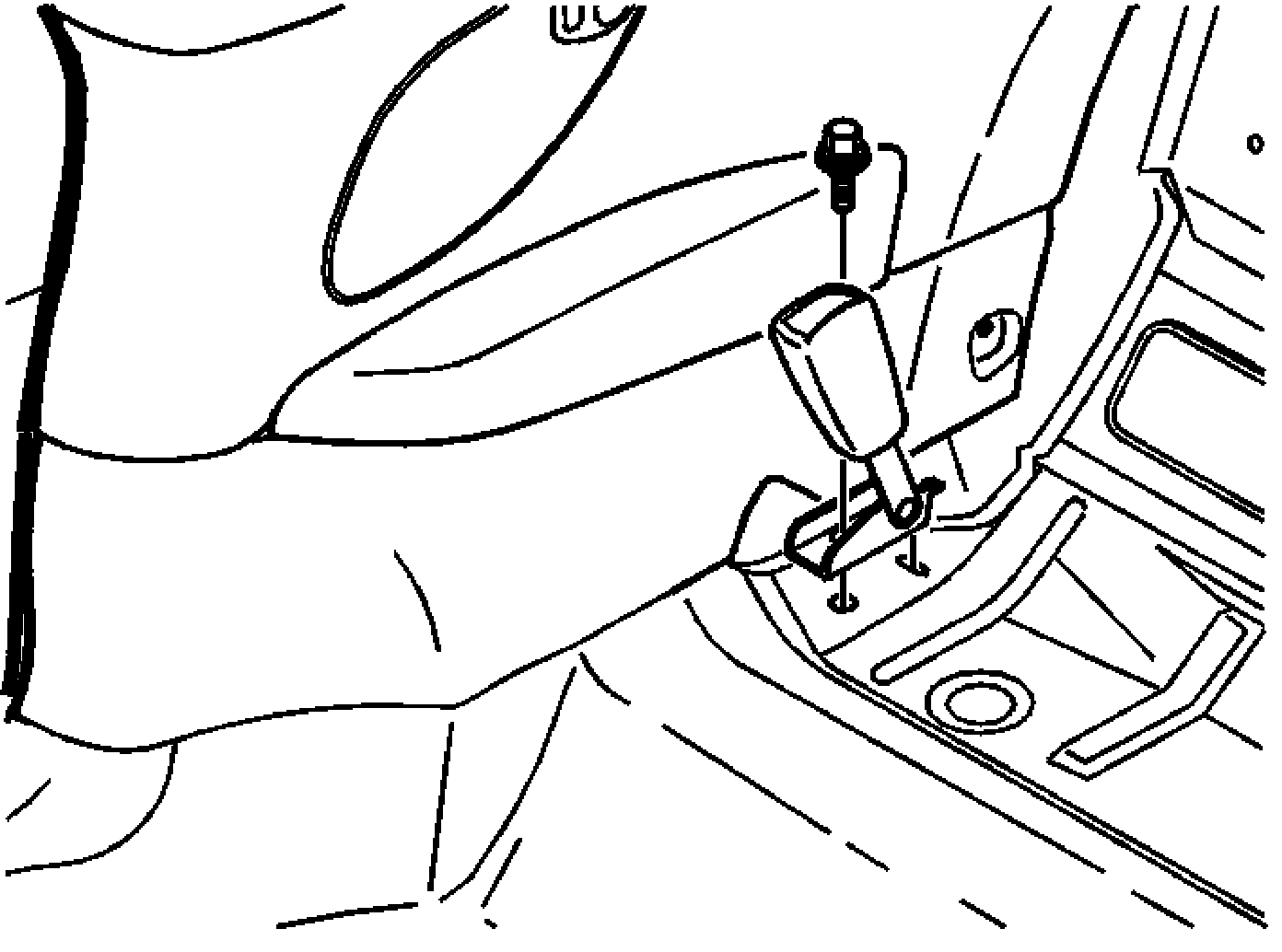

Rear Seat Belt Buckle

Remove:






- the rear seat.
- 1 screws per seat belt buckle.

Installation
- Tighten the screws for the seat belt buckle to 48 Nm (35 lb.ft).
