Potentiometer For the Front Height Adjustment Motor

Potentiometer for the front height adjustment motor

Removing the potentiometer










- Set the seat height adjustment to its uppermost position.
- Remove the seat from the c.
- Unclip the cover.

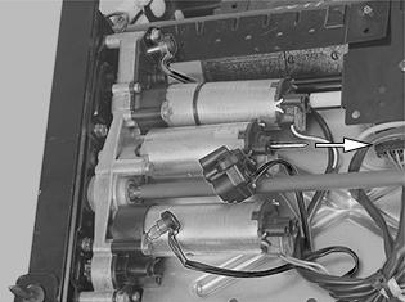

- Pull out the potentiometer.
- Disconnect the connectors and wiring.

Install:
- In reverse order.

NOTE: If the potentiometer gas a fixed gear either reuse the gear or order a new on separately.

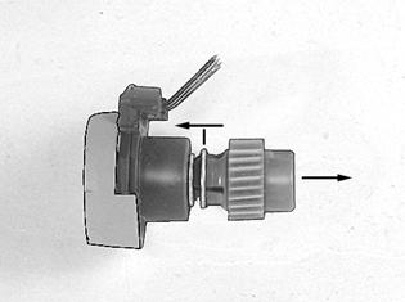

- Remove the snap ring from the gear on the potentiometer.
