Procedures

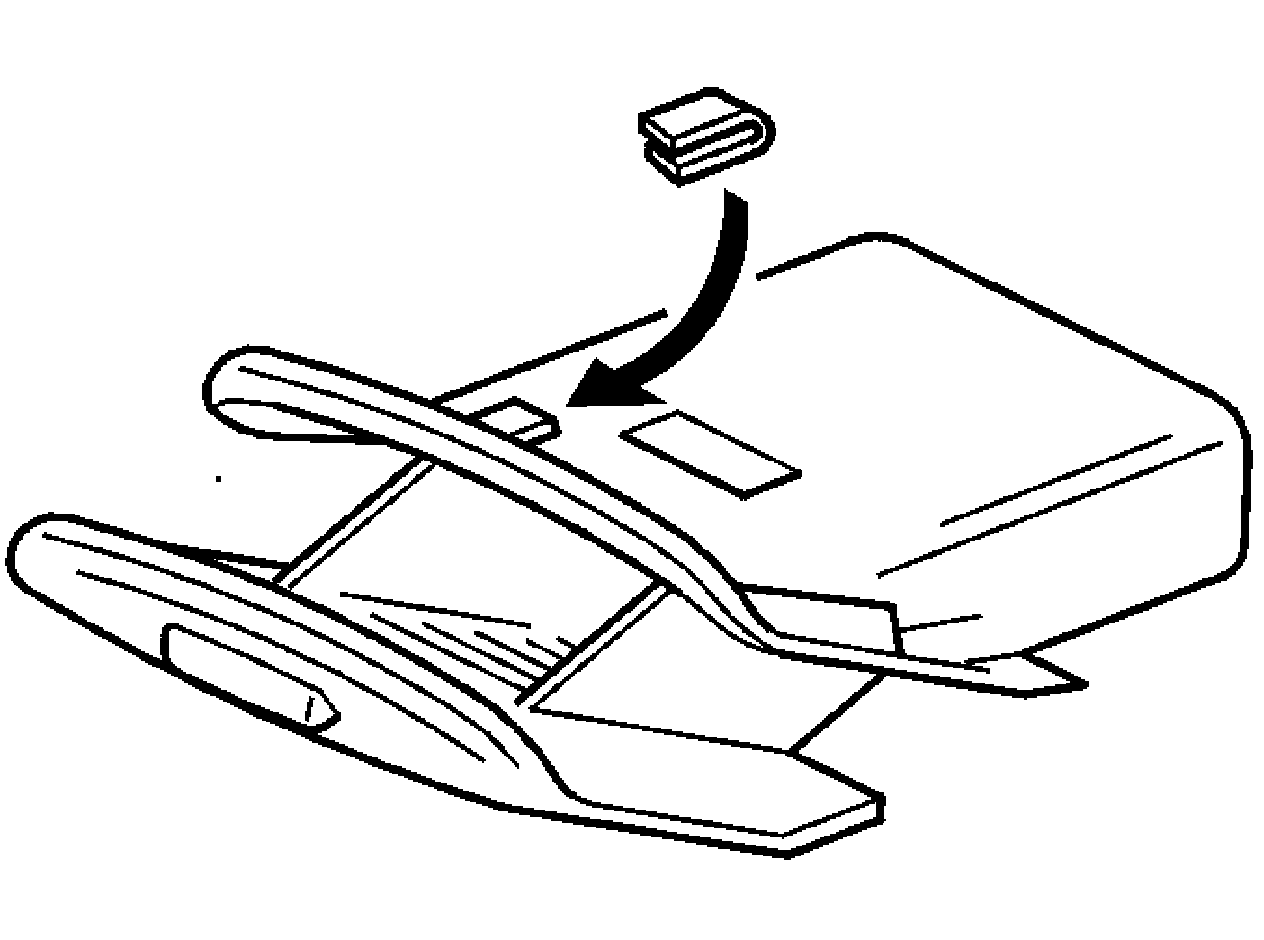

Noise from front cover in center console







- Install tape, P/N 3537385-1, on the sides of the cover (on the ribs).

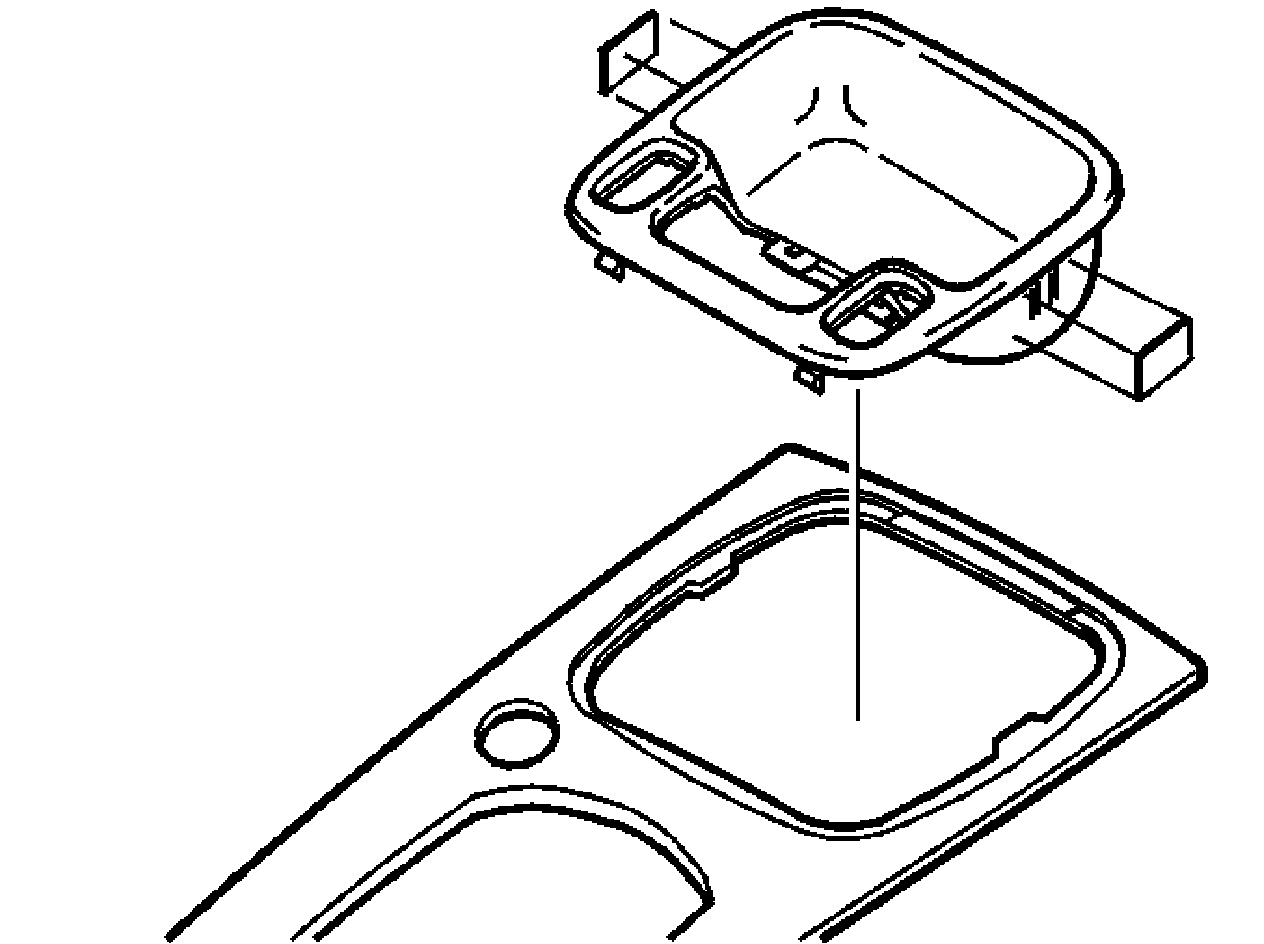

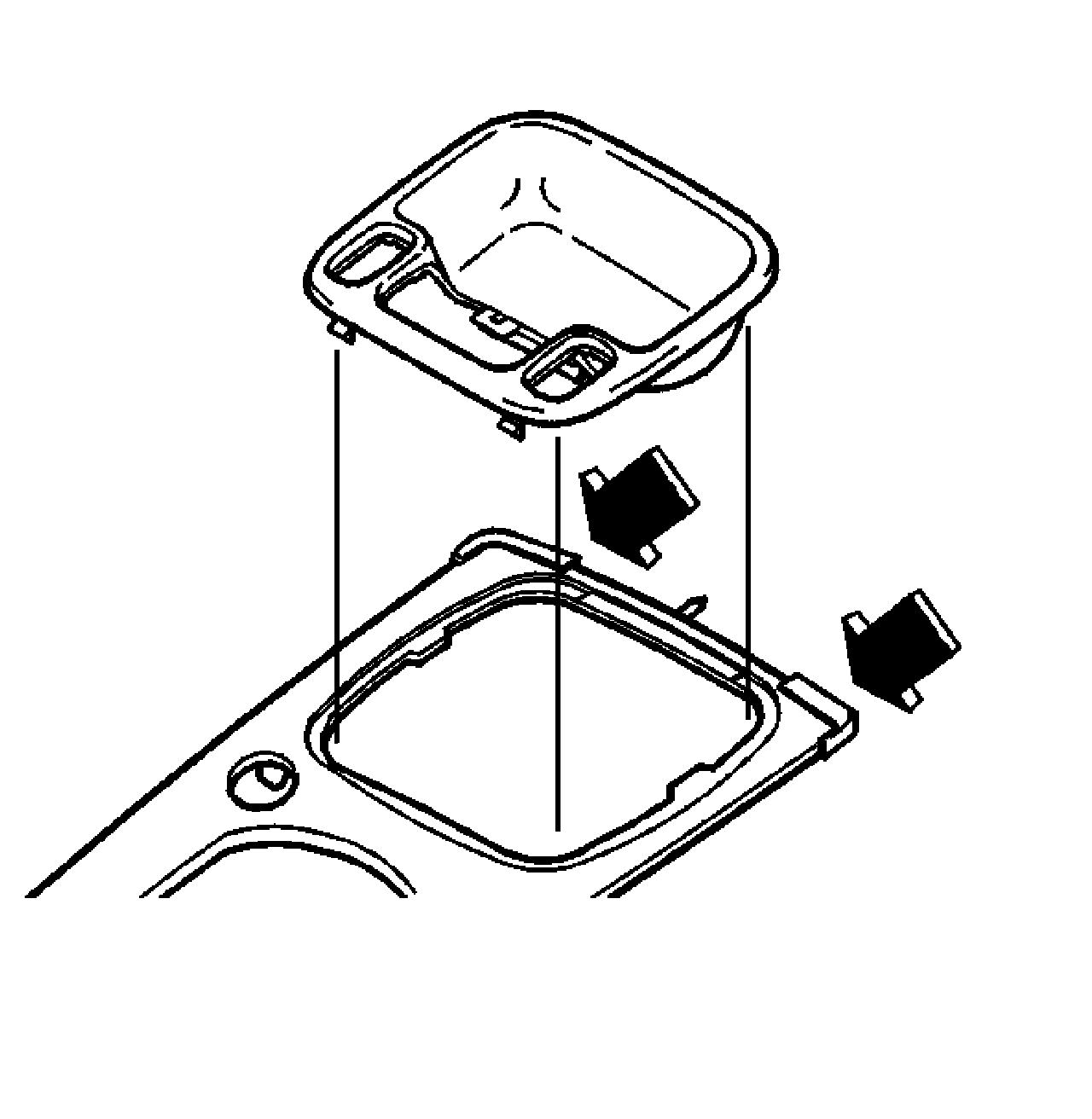

Noise from ashtray







- Install tape, P/N 3537385-1 around the upper mounting on the ashtray holder.

Noise from cover panel-center console







- Install tape, P/N 3537456-0, on the front section of the panel.

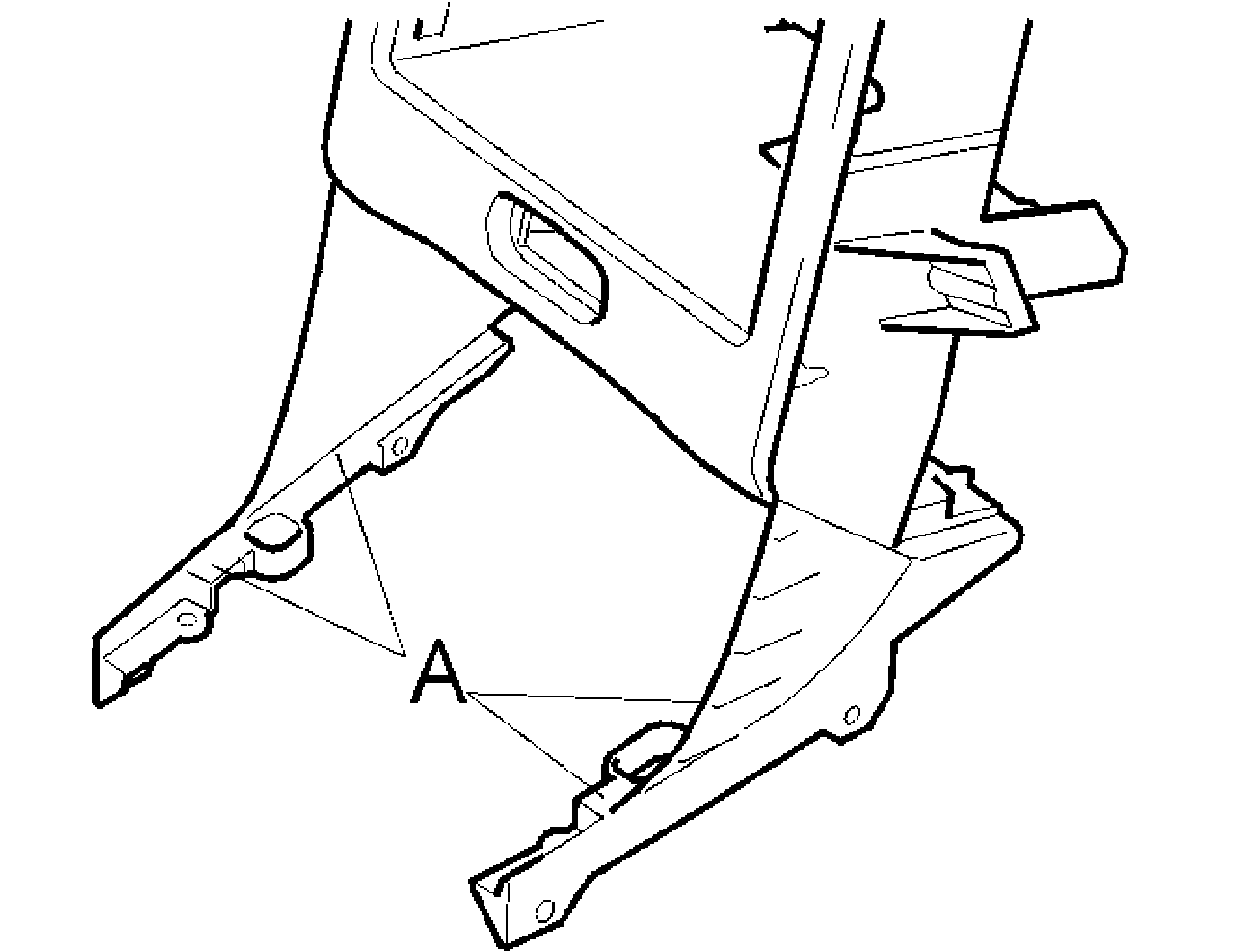

Noise from panel - dashboard







- Check that there is tape on the side of the dashboard mating surface to the cover.
- Tape missing, install a piece, P/N 3537456-0, in front of the clip cut out and a bit behind (on both sides).

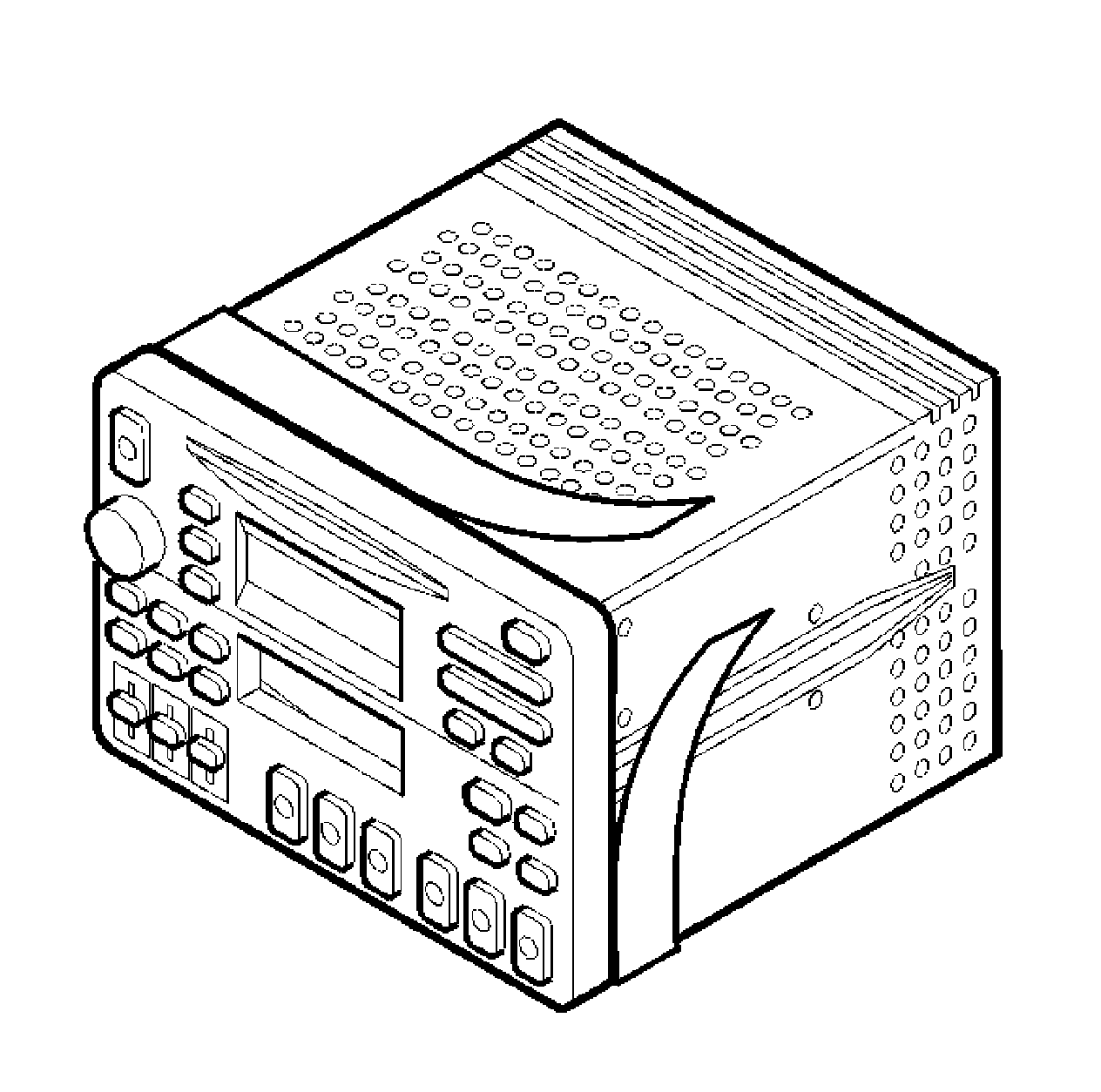

Noise from radio - radio tray







- Install tape, P/N 1161410-4 around the radio.

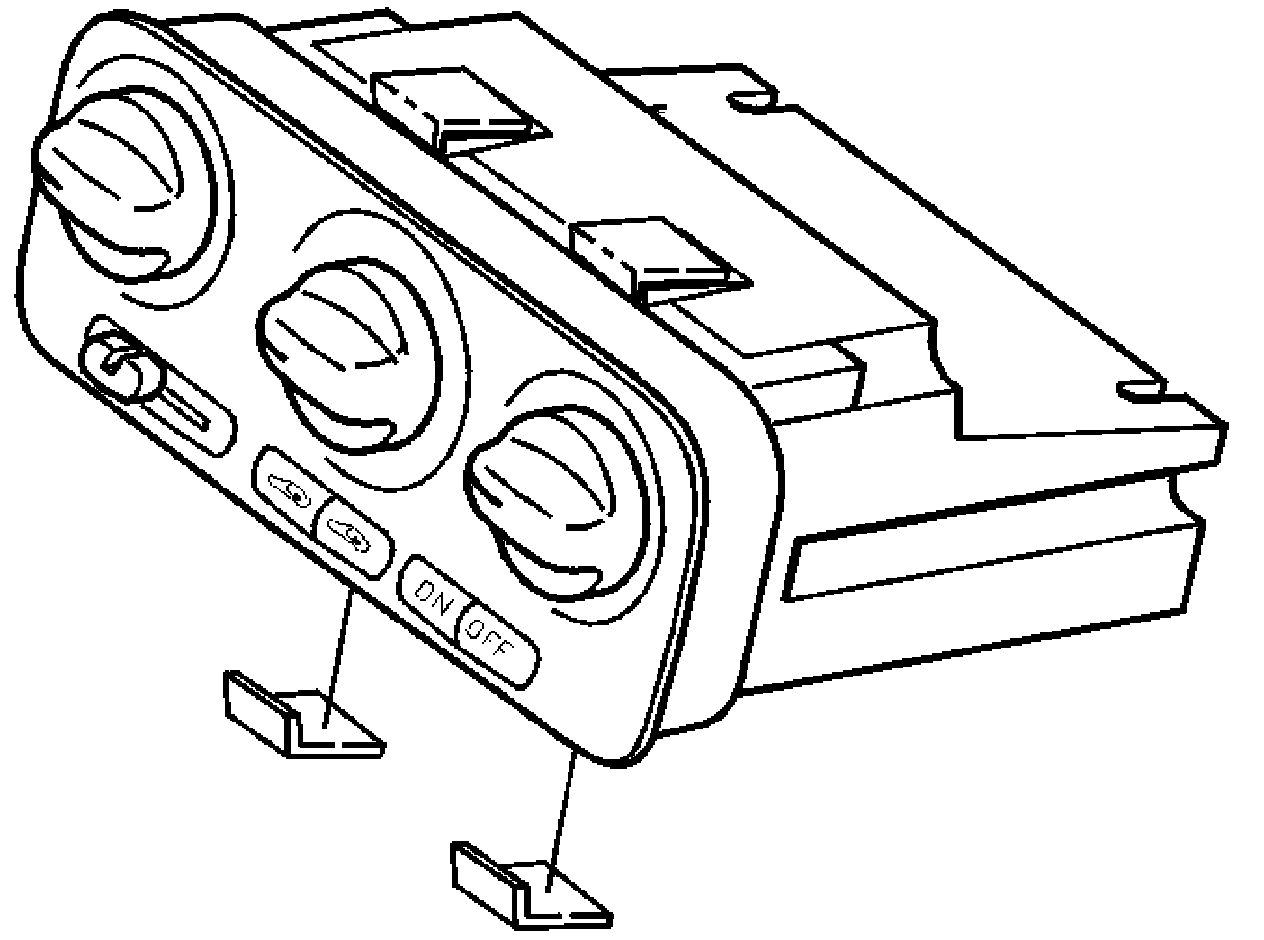

Noise from ECC control module clip - holder







- Install tape, P/N 1161410-4, on the ECC control module clip (upper and lower sides).
