Procedures

Replacing The Tilt Sensor (2/4 door)

Removing:

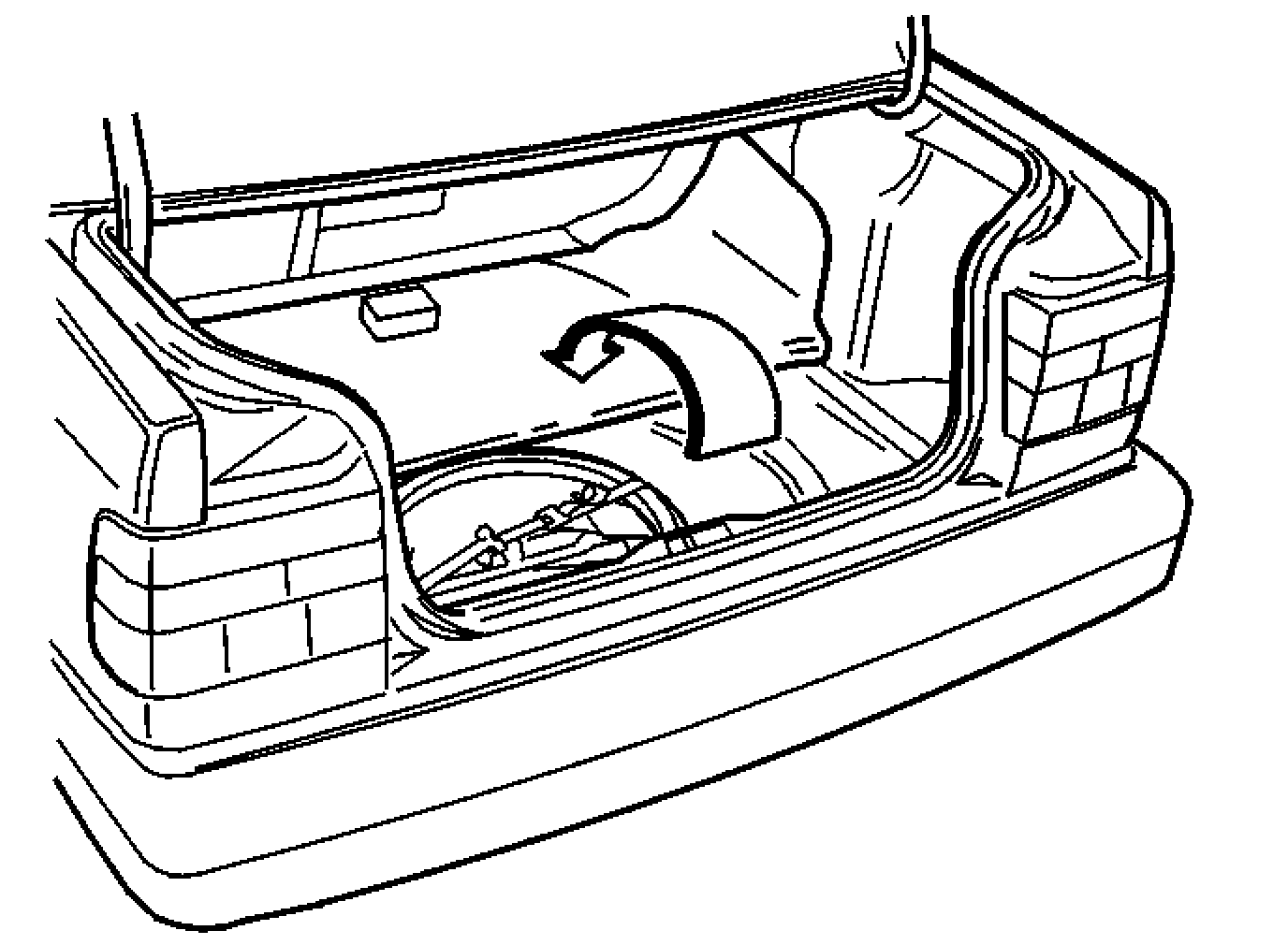

- Fold up the carpet.

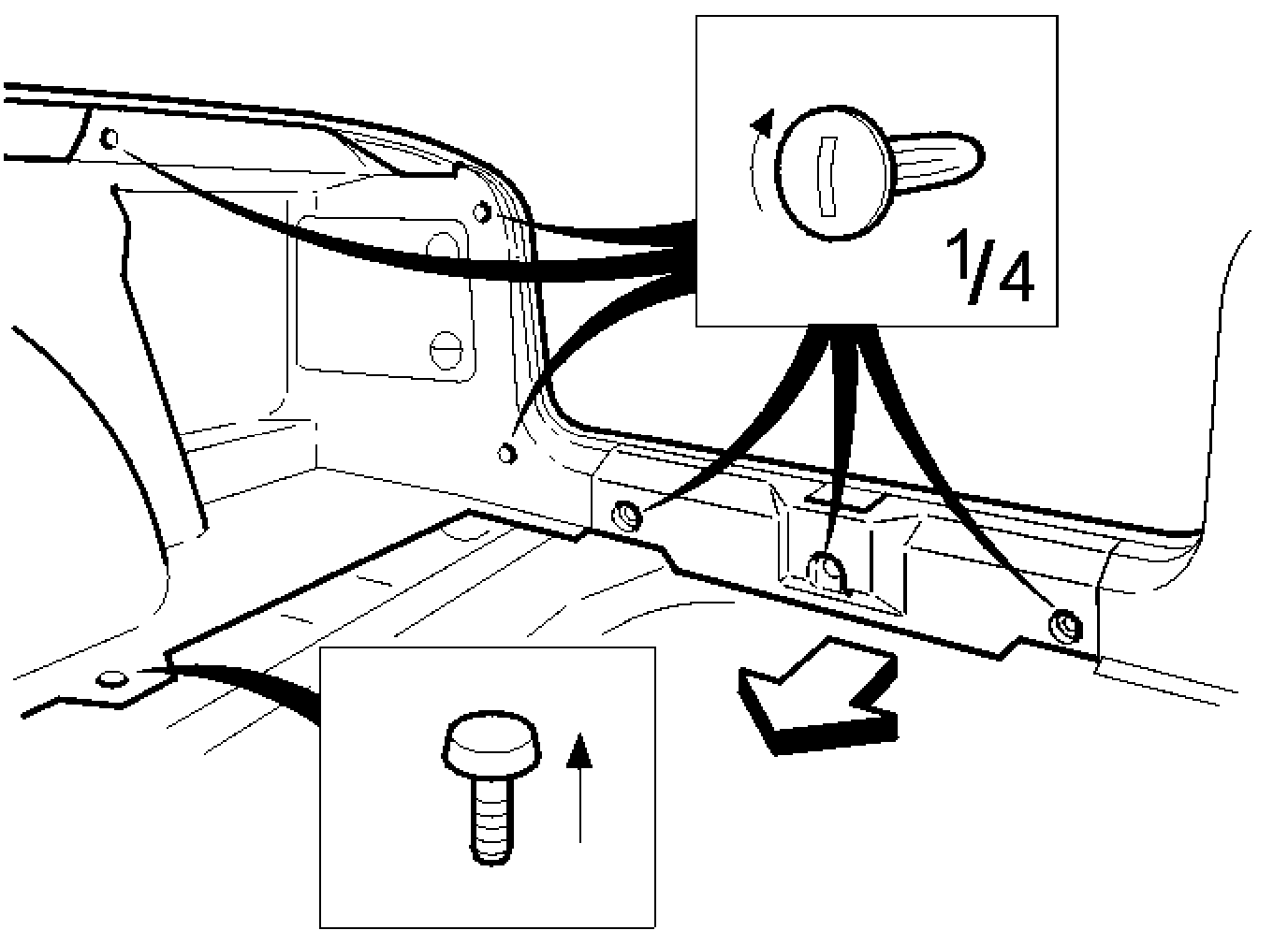

- Remove the rear crossmember panel.







- Detach the side panel.
- Push it to one side.

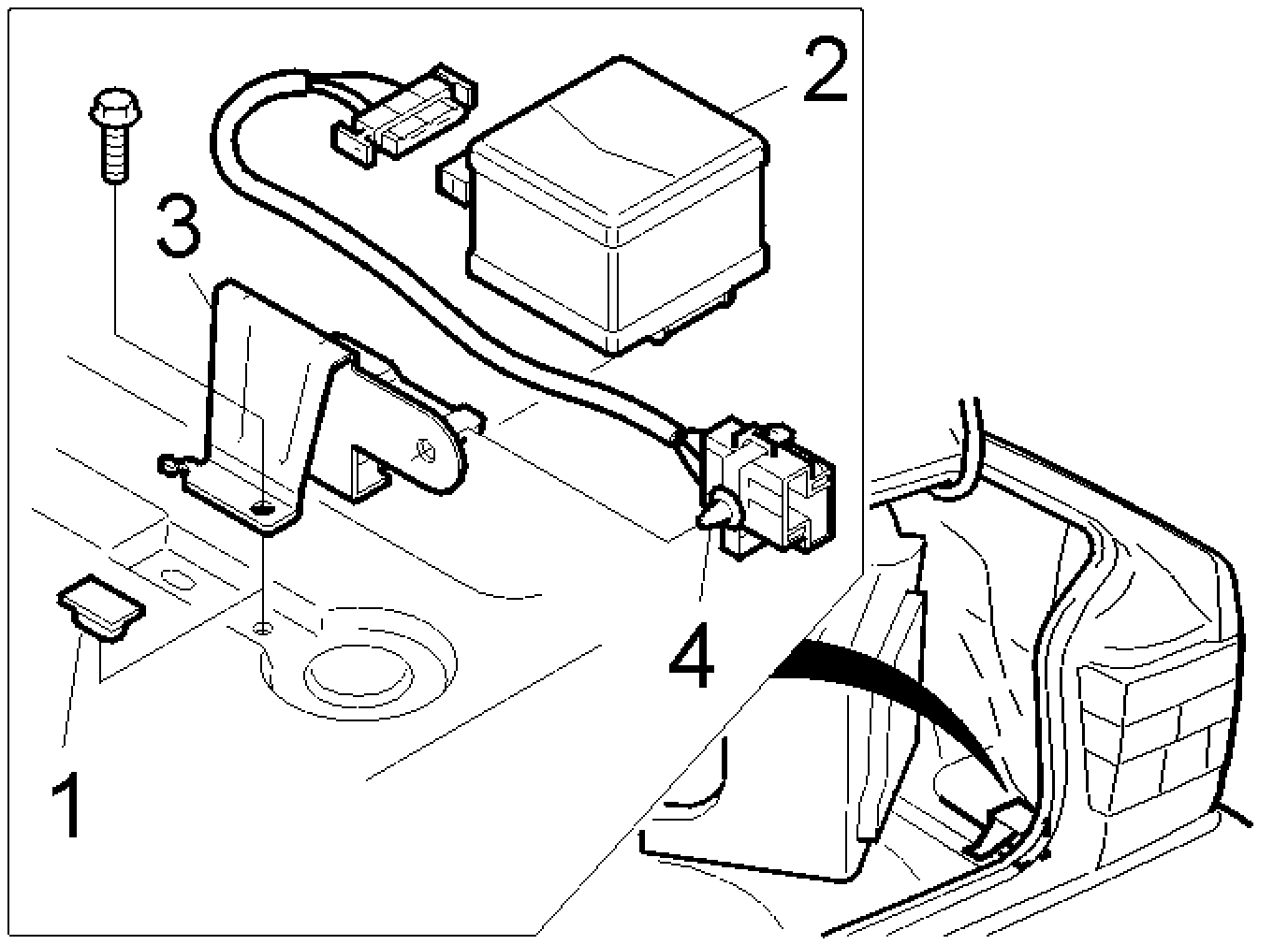

- Disconnect the connector from the tilt sensor.
- Remove the tilt sensor from the bracket.

Installing
- In reverse order.
