Courtesy Lamp: Service and Repair

Interior Lamp in the Rear View Mirror Convertible, Replacement

Replacing bulb







- Ignition off.

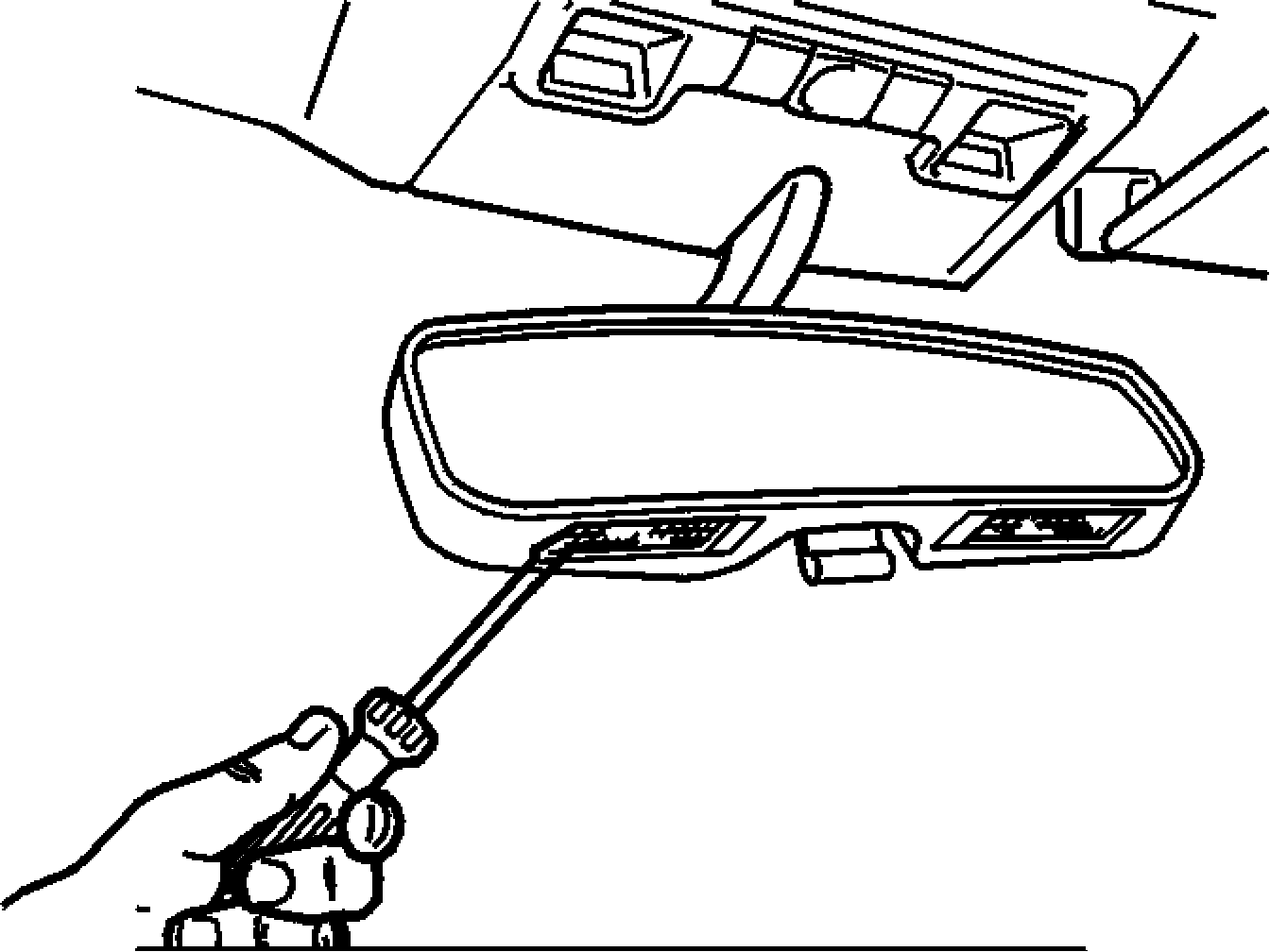

- Carefully remove the lamp housing with a flat screwdriver.
- Withdraw the lamp housing and connector.
- Replace lamp/lens.
- Install in reverse order.

Test the bulb.
