Seat Cushion Upholstery

Seat cushion upholstery

Special Tools: 115 8962

Removing the upholstery from the seat frame
- the front seat from the car.
- the side panel.
- the side panel.

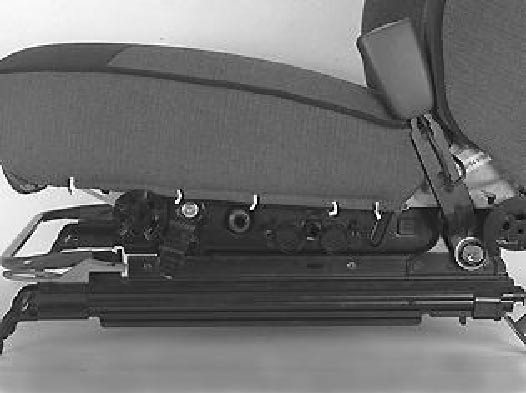

- the half moon clips on the sides of the underside of the cushion.







- the half moon clips at the front edge of the cushion.

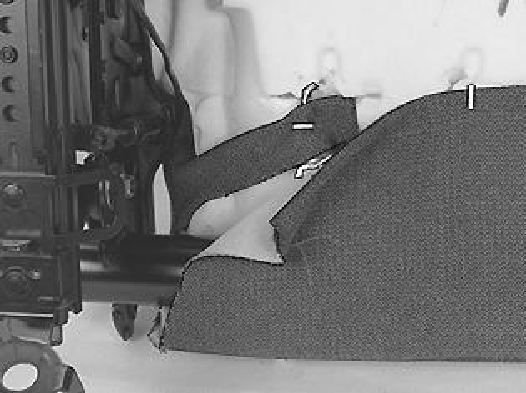

- the half moon clips at the rear edge of the underside.







- the half moon clips on the sides and at the rib

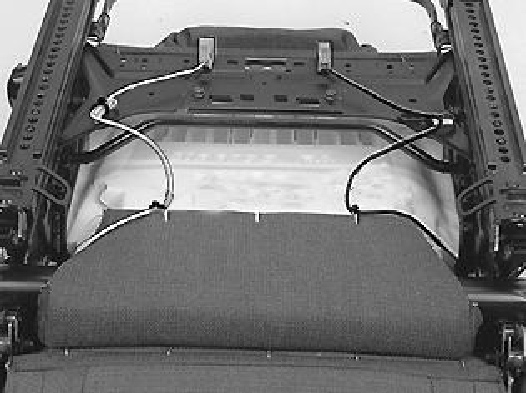

- the spring on the underside.







- Fold up the upholstery.

Removing upholstery from the foam filling

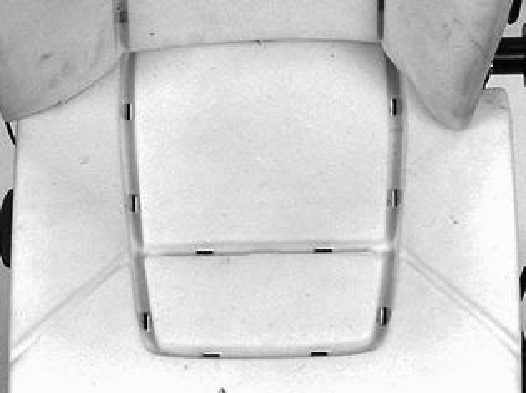

- the half moon clips on the front-rear channels.







- the half moon clips on the lateral channel.
- Replace the upholstery.

Installation
- In reverse order.
- Position and measure the upholstery before securing.
- Use special pliers, P/N 115 8962 to secure the half moon clips

NOTE: When hooking the upholstery to the clips, ensure that the steel rod is not pulled up out of the foam padding. Also ensure that the steel rod in the upholstery does not bend excessively. There is a risk of comprehensive deformation. This will result in loose and unattractive upholstery.
