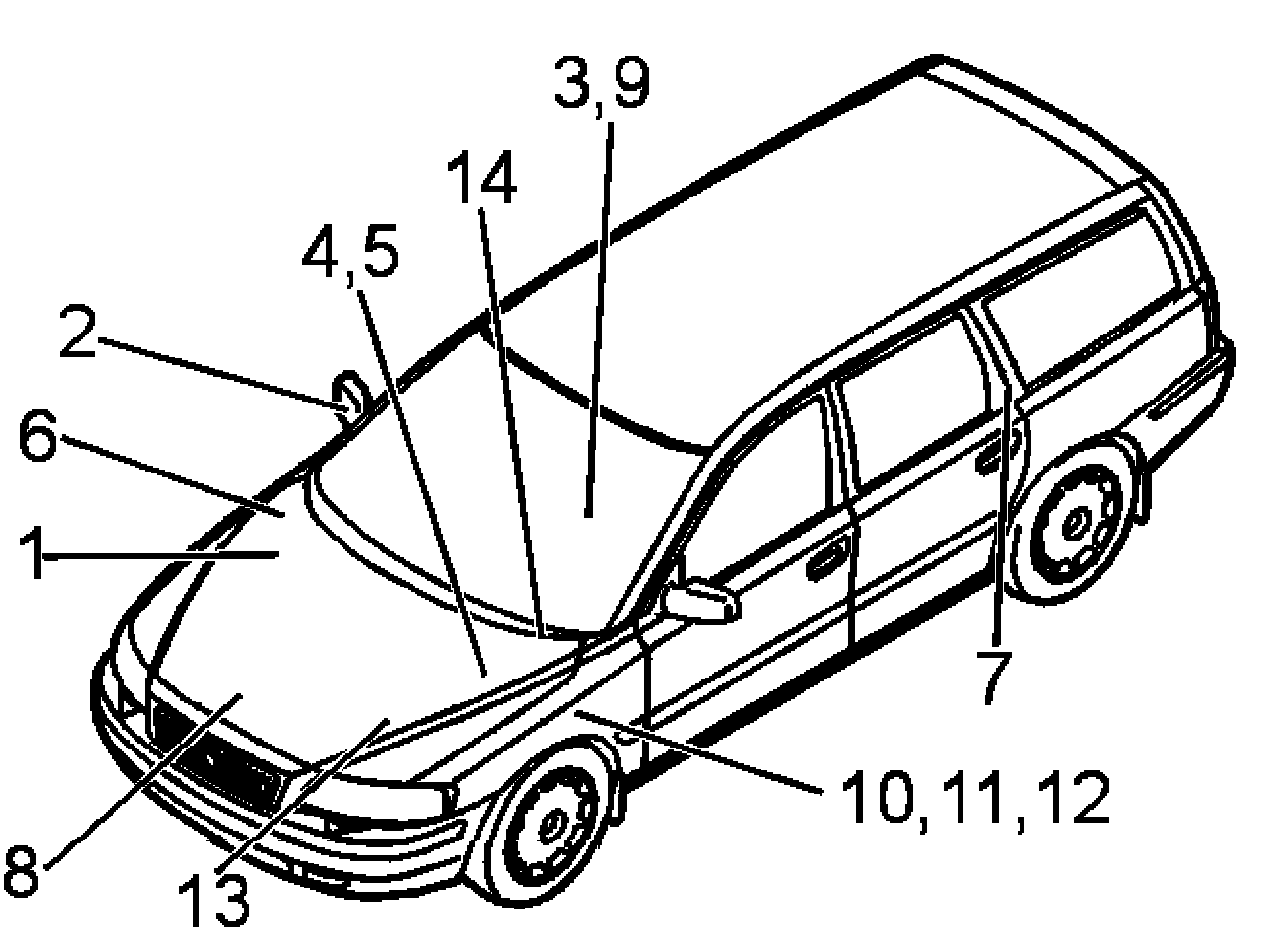

Sensors

Sensors







1. Engine coolant temperature (ECT) sensor
2. Outer temperature sensor
3. Parking brake switch
4. Pedal sensor for the power brake booster
5. Brake fluid level sensor
6. Engine coolant level sensor
7. Left fuel level sensor
8. Oil pressure sensor
9. Yaw rate and lateral acceleration sensors
10. Accelerator pedal (AP)
11. Clutch pedal position sensor
12. Stop lamp switch
13. Back-up (reversing) lamps switch
14. Start switch.
