Rear Axle - Whining Noise

V70 XC 2001-
2001-

Section
4

Group
46

No.
0006

Year
01

Month
03

Vehicles involved:
V70 XC 2001-

Final drive gear whine Background

A whining noise from the final drive can occur at speeds up to 120 km/h (75 mph). The whining occurs when accelerating gently or when engine braking. The noise is heard at operating temperature but can also be heard when the final drive is cold. As a service solution it is recommended that a weight is installed on the rear axle and that softer bushings are installed.

Affected cars

Model Factory Chassis number
V70 XC 2001 - 1 001100-

Materials

Description Number P/N

Resonance weight 1 8646622
service kit

Bushing 2 8667524

Rear axle member, installing weight

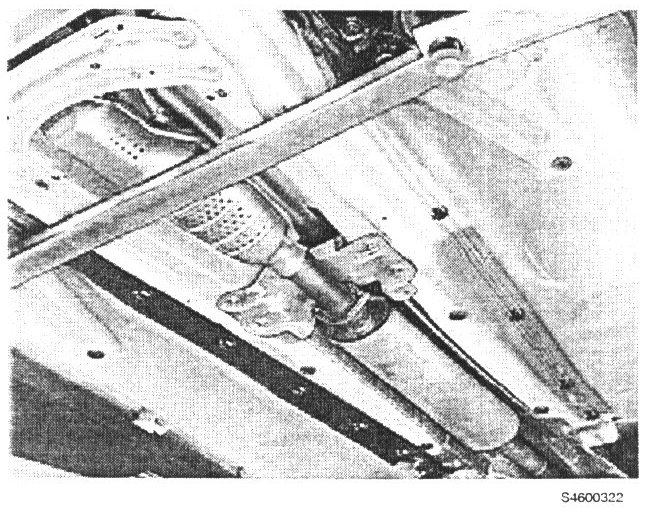

Removing the rear section of the exhaust system 1

Raise the car.





Support the front section of the exhaust system so that there is no strain on the exhaust manifold.

Loosen the two screws on the front flange of the exhaust system.

Lubricate the rear eyelets for the exhaust system. Lever the entire system off.

Remove the two screws for the exhaust brackets. Lift out the entire system.

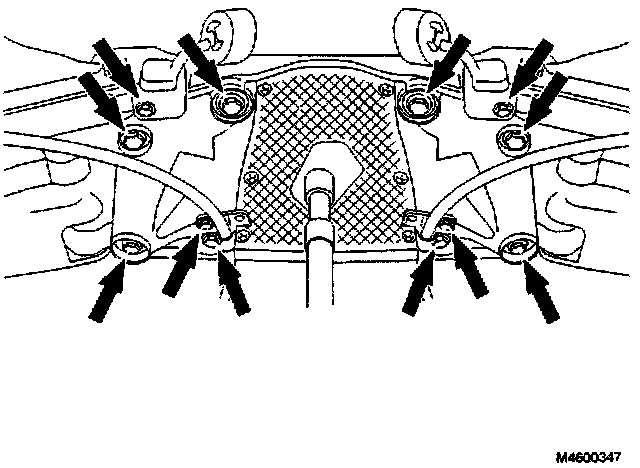

Removing the lower support from the rear axle member 2

Support the final drive through the hole in the plastic covert. Use a jack.

Remove:





the eight screws for the lower support

the two mountings for the hand brake cables on the rear axle member.

Lower the lower support.

Replacing the rear bushings in the final drive housing 3

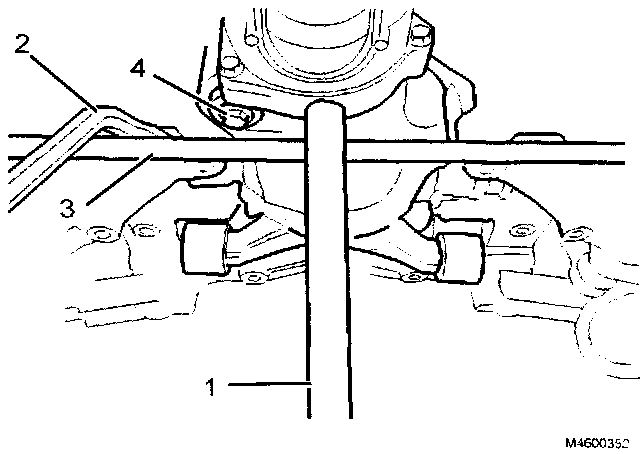

Position the mobile jack (1) as illustrated.

Move the anti-roll bar (3) out of the way. Use a pry bar (2).

Loosen the screw for the front bushing (4) approximately six turns so that the rear bushings (5) release from their seats.

Removal 4

Lift the final drive housing at the front edge so that it is horizontal.





Use an open wrench as a support. Tap off the bushing on both sides from the final drive.

Installation

Tap in the new bushings. Use a rubber mallet.

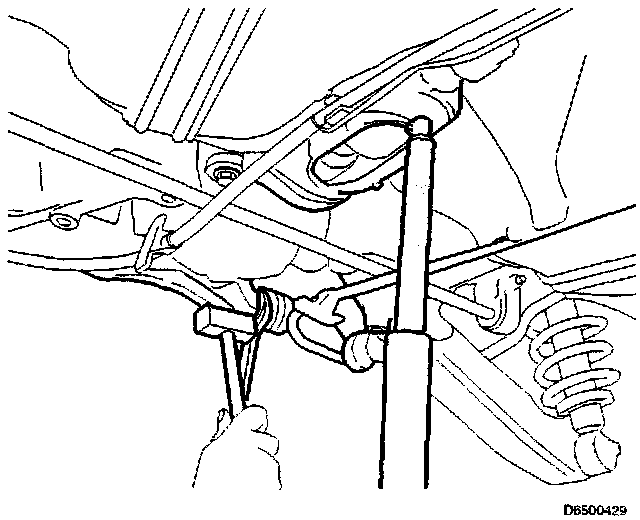

Raise the final drive using the mobile jack (1). 5

Move the anti-roll bar (3) out of the way Use a pry bar (2).

Tighten the screw for the front bushing (4). Tighten to 100 Nm (74 ft. lbs.).

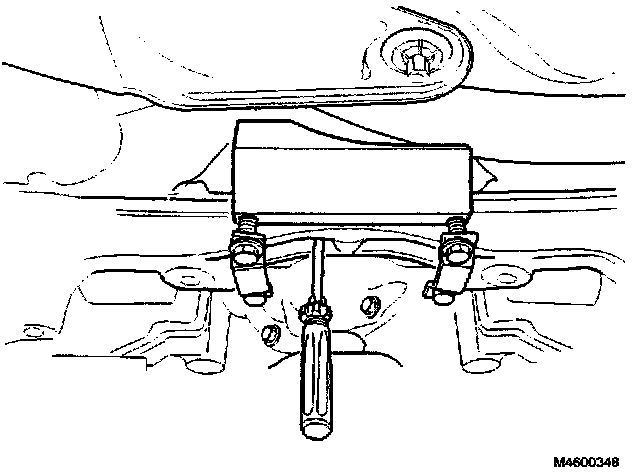

Installing the weight on the rear axle member 6

Install the weight and brackets. Use the four screws supplied.





Center the weight. At the same time hold the weight as far back as possible by pressing a screwdriver (6-7 mm tip) up between the weight and the final drive.

Tighten the screws. Tighten to 25 Nm (18 ft. lbs.). Remove the screwdriver.

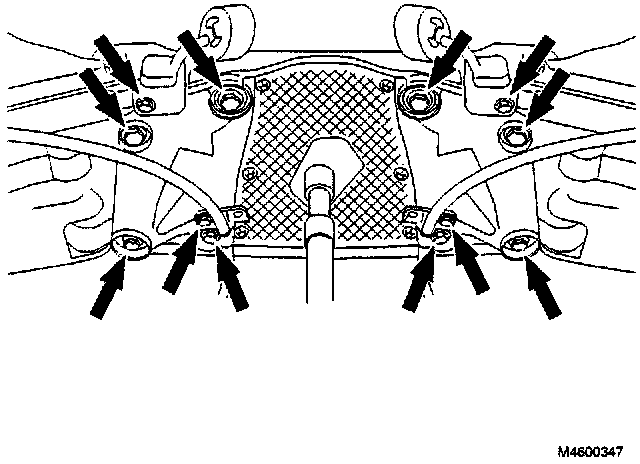

Installing the lower support from the rear axle member 7

Install:

the lower support using the eight screws. Tighten to 100 Nm (74 ft. lbs.)





the brackets and hand brake cables

the brackets for the exhaust system.

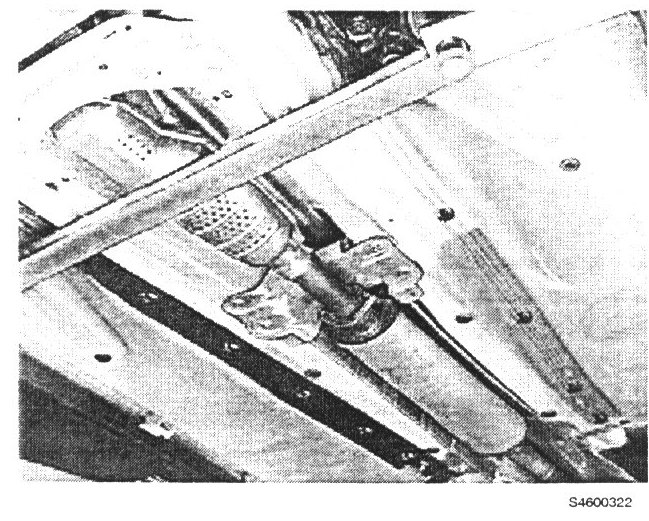

Installing the rear section of the exhaust system 8





Install the exhaust system.

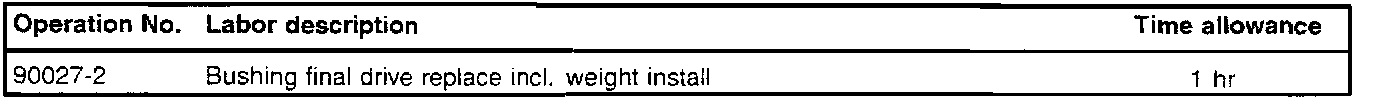

WARRANTY STATEMENT: Claims may be submitted under the New Car Warranty when there is a documented customer complaint using claim type 01.
