Replacing the Limiter Roll

Replacing the limiter roll

Note: As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Note: The diameter of the roll varies in relation to the tire dimensions When replacing with a larger tire dimension the rolling radius increases which means a larger turning circle. Ensure that the correct roll is ordered.

Removing the limiter roll

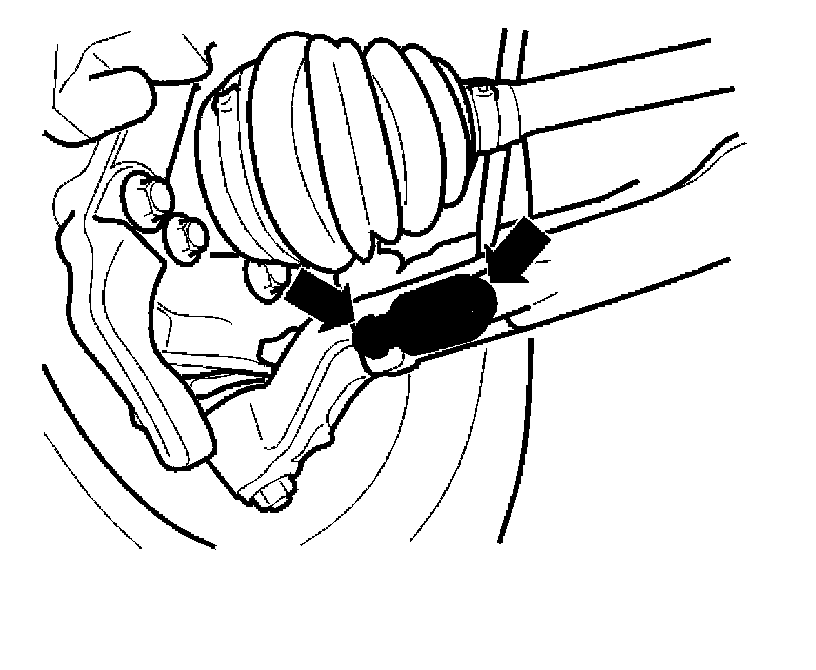

Remove:
- the screws (x 2)
- the roll.

Installing the limiter roll

Install:
- the roll
- 2 screws Tighten to 25 Nm.

Note: Always use new screws.
