Ignition and High Voltage Components

Ignition And High Voltage Components

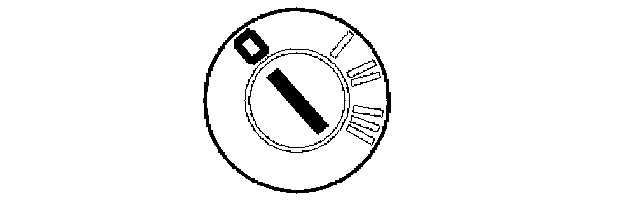

Switch off the ignition before:
- Connecting and disconnecting the test instruments
- Connecting and disconnecting the connectors
- Taking readings using an ohmmeter.

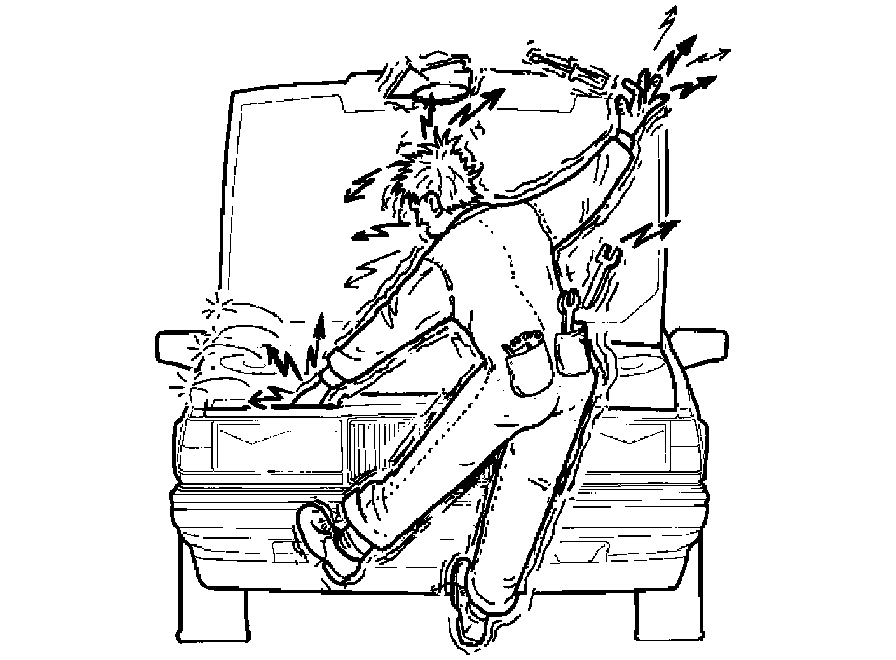

High voltage







- There are dangerous voltages at all points in the ignition system, including the connectors etc.

WARNING: The ignition system operates at high power and voltages. Contact with the high tension circuit

CAUTION: Because of the fire hazard avoid sparking when working on the fuel system, especially when checking the injectors.

- the ignition coil, spark plug caps and distributor cap
- is dangerous.
