Home >> Volvo >> 2001 >> V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Tightening Torque

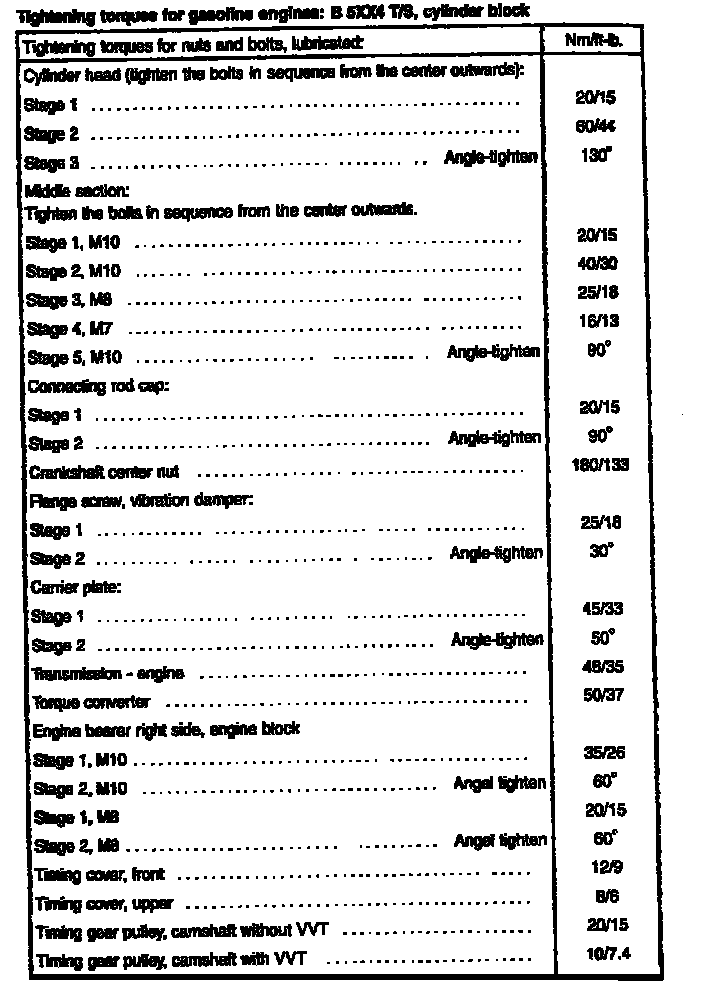

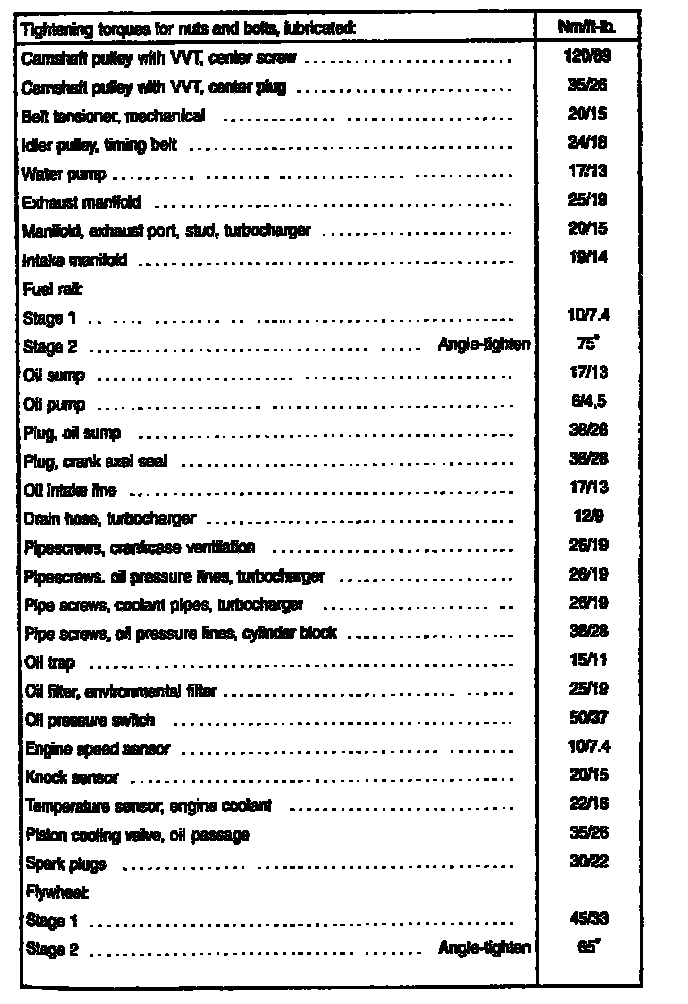

Tightening Torque

V70 Engine Mechanical Cont.:





V70 Engine Mechanical Cont.:
