General Specifications

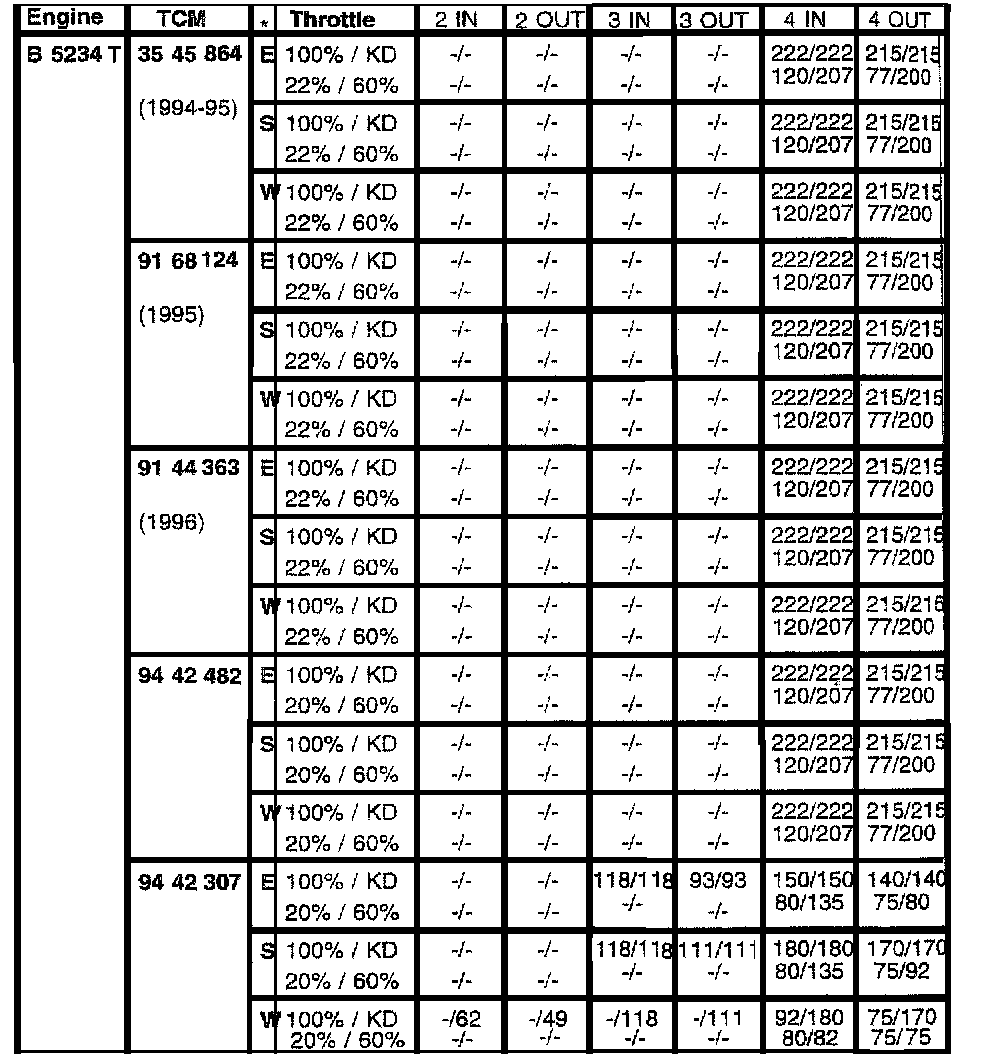

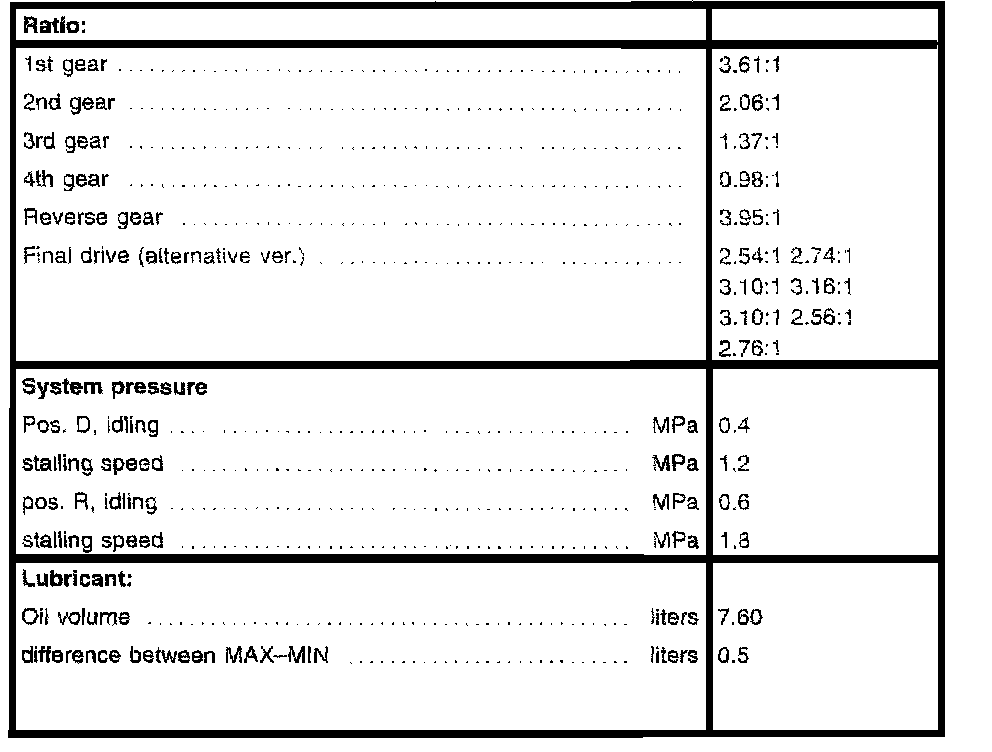

AW 50-42 4-spd A/T Technical Data:





AW 50-42 4-spd A/T Technical Data:

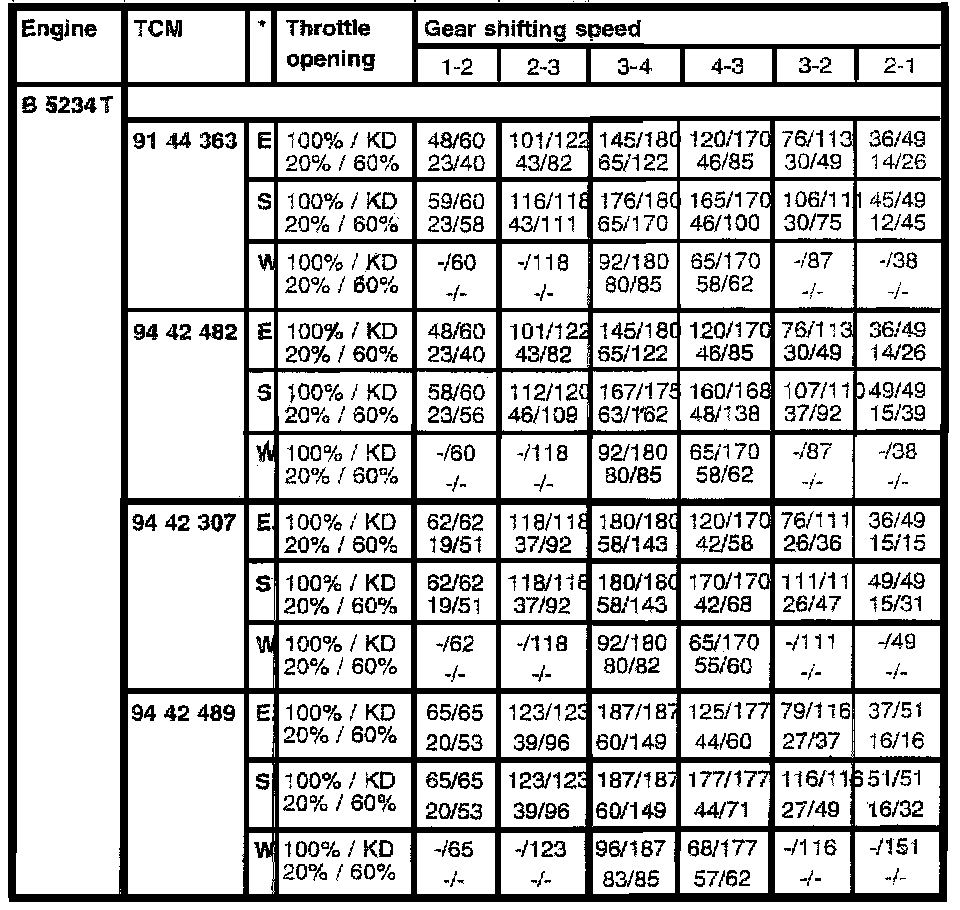

AW 50-42 4-spd A/T Technical Data Cont.:




AW 50-42 4-spd A/T Technical Data Cont.:

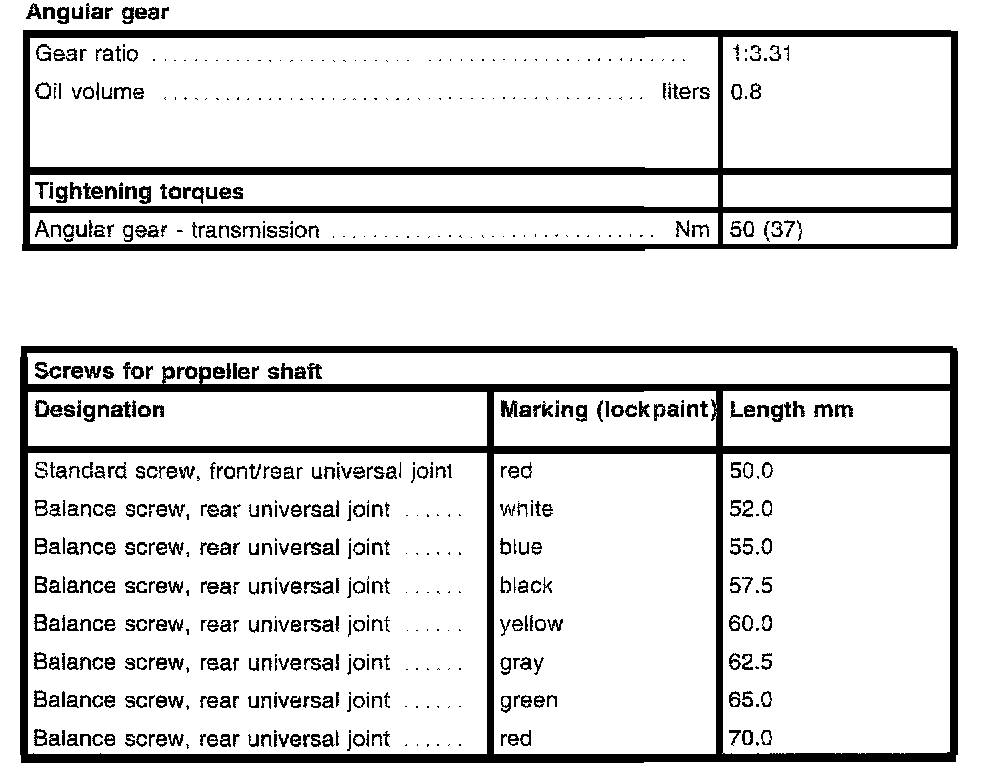

AW 50-42 4-spd A/T Related Technical Data:
