V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Charging System
>>
System Specifications
>>

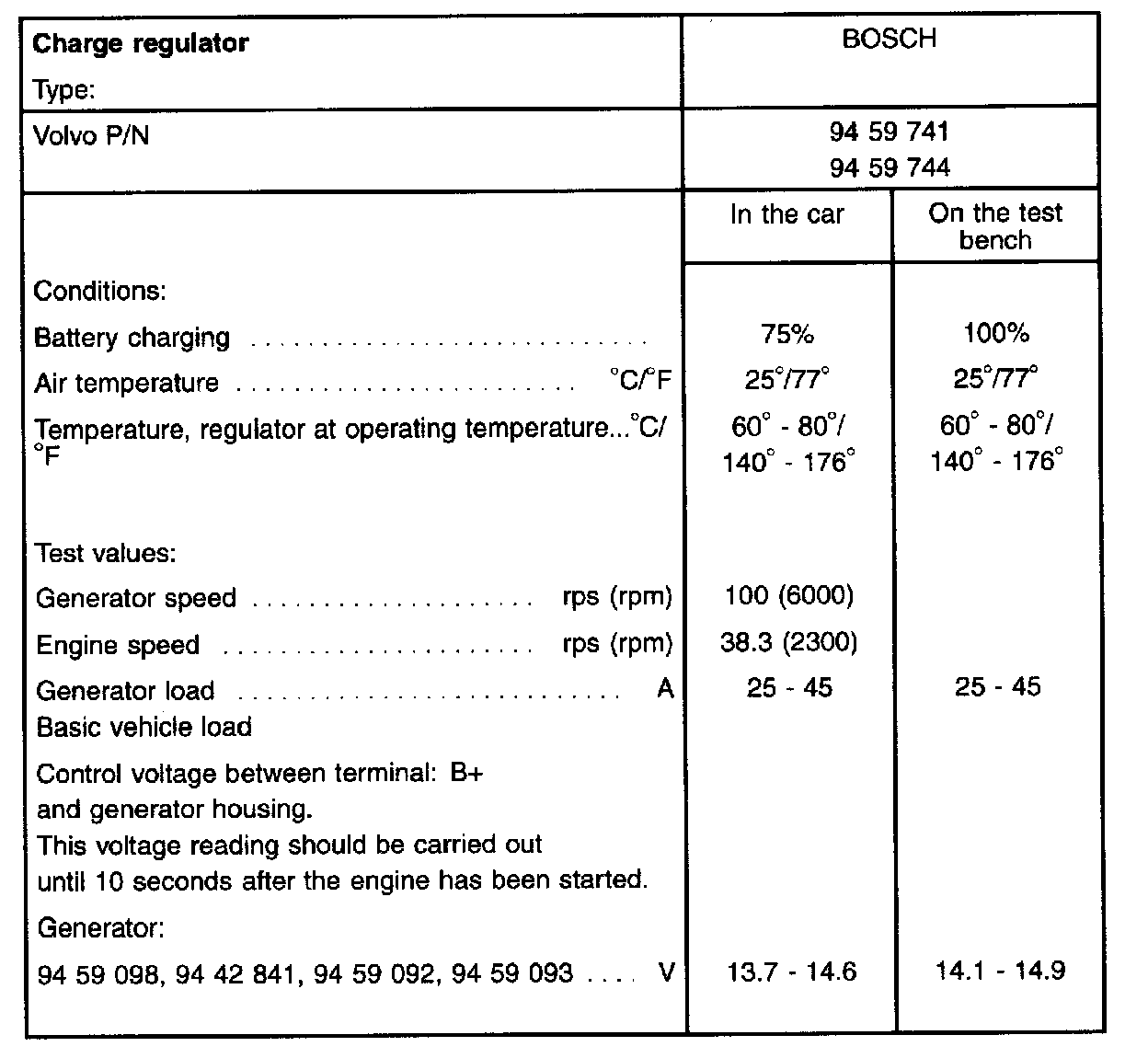

Charge Regulators, Electrical and Mechanical Data
Charge Regulators, Electrical and Mechanical Data
Charge Regulators, Electrical and Mechanical Data:
